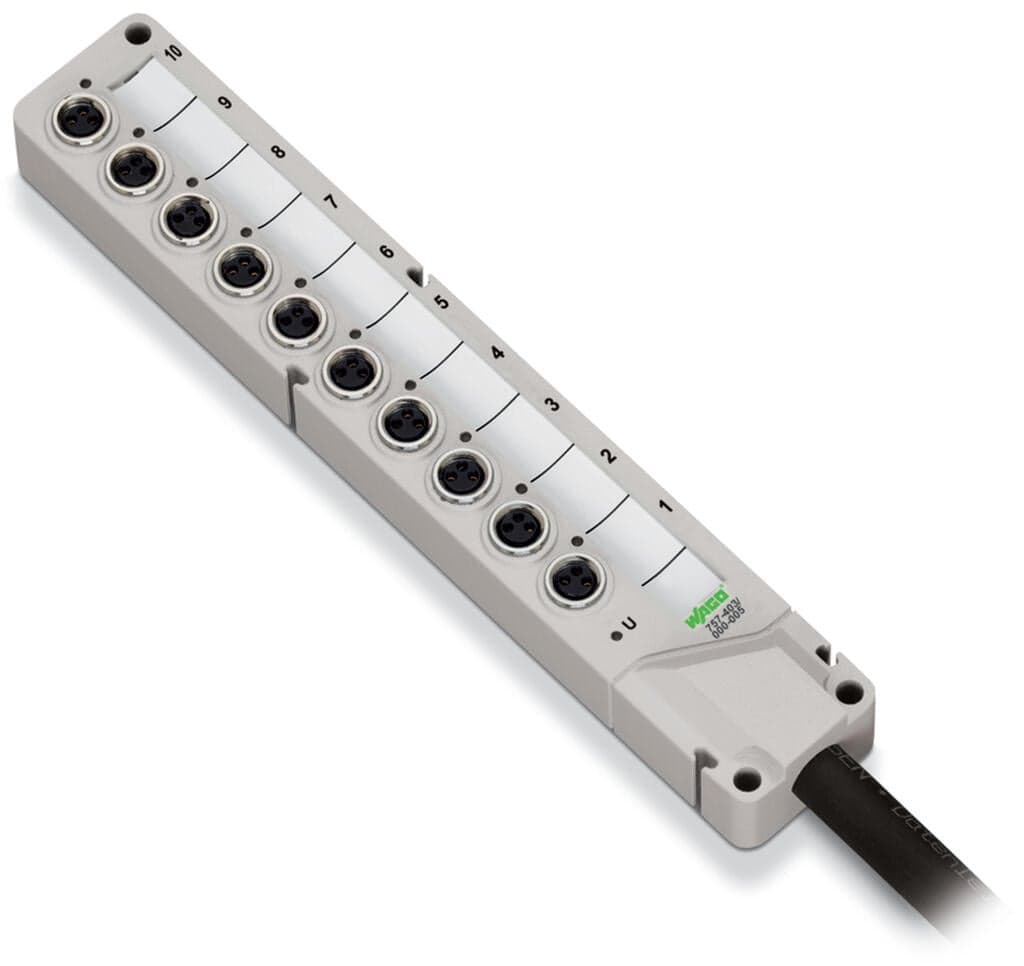

Product Model
757-403/000-010
Selling Points
- 1Bending radius of 10 x cable diameter for flexible applications.
- 210 x M8 sockets with 3-pole connections for secure signal transmission.
- 3Made from PA 66 (UL 94 V0) material, ensuring high insulation resistance and durability.
- 4IP68 rating for protection against water and dust, suitable for harsh environments.
- 5Includes green LED for operating status and yellow LED for signal status indicators.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Contact resistance (max.) | 0.01Ω | Supply voltage | 10 … 30?VDC;?Rated voltage: 32 V ~ rms |
Current carrying capacity (signal connections) | 2A | Current carrying capacity (supply connections) | 6A |
Rated value of electrical isolation | 500V | Functionally separated potential groups | Kontakt/Kontakt |
Insulation resistance | >109Ω | Signal characteristics | PNP |
Indicators | LED yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status | Connection technology: inputs / outputs | 10 x M8 socket; 3-pole |
Connection technology: trunk cable | 1 x Fixed connecting cable | Length of connection cable | 10m |
Strip length | 100?mm?/ 3.94?inches | Wire colors | white, green, yellow, gray, pink, red, black, purple, gray/pink, red/blue, brown, blue |
Cable design | Wire cross-section:?0.34?mm2;?Wire cross-section (2):?0.75?mm2 | Width | 30?mm?/ 1.181?inches |
Height | 20?mm?/ 0.787?inches | Depth | 175?mm?/ 6.89?inches |
Mounting type | Screw mounting | Weight | 943g |
Housing material | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free | Halogen-free | Yes |
Bending radius | 10 x cable diameter (min.) for flexible application | Material properties of the connections | Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles |
Sheath material | PUR | Sheathed cable color | black |
Encapsulation | Fully encapsulated with conformal coating (UL 94 V0) | Ambient temperature (operation) | -25 … +80 °C |
Ambient (operating) temperature (dynamic) | -5 … +80 °C | Ambient (operating) temperature (static) | -40 … +90 °C |
Protection type | IP68 | Note on protection type | 72 h at a depth of 1 m under water per EN 60529 in the fully locked position with its plugs or protective caps |
Pollution degree | 3 per VDE 0110 | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | per IEC 60068-2-27 | eCl@ss 10.0 | 27-44-01-08 |
eCl@ss 9.0 | 27-44-01-08 | ETIM 9.0 | EC002585 |
ETIM 8.0 | EC002585 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918978668 |
Customs tariff number | 8536698000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 29a91708-04a2-48fa-8b42-5cee181edece |
SCIP notification number (Belgium) | 9293a776-bb3e-48c0-a198-bef57b717e37 | SCIP notification number (Bulgaria) | 6a2e8959-0a88-4f57-ae81-2a5491a4a900 |
SCIP notification number (Czech Republic) | fb73401f-05db-4a97-8a6c-cd5d4b178f9d | SCIP notification number (Denmark) | 366d3f9a-728d-47b9-8549-3284fba77e0b |
SCIP notification number (Finland) | cb7a0f7f-71d3-44f1-9d94-288dcf98c608 | SCIP notification number (France) | 90be1308-d0c7-4f2a-8d5e-dbd9ed12bf57 |
SCIP notification number (Germany) | 2504945f-bb12-4bf3-be36-0c95980b7d83 | SCIP notification number (Hungary) | e9ad6400-81e6-4711-a189-922bbb1175c9 |
SCIP notification number (Italy) | fa836ddd-f887-4d90-9172-2d50ad862565 | SCIP notification number (Netherlands) | a21117f3-4f40-414c-b6c7-c1394de1e017 |
SCIP notification number (Poland) | 4e4d9d98-fa08-47f8-a3e8-3fa8be7d5fd0 | SCIP notification number (Romania) | 26c32c46-82a6-4a0e-a964-be6563396014 |
SCIP notification number (Sweden) | 78663162-d7ba-44e6-9e79-825b5fd6bb3d |
Specifications may be subject to change without notice
