Product Model

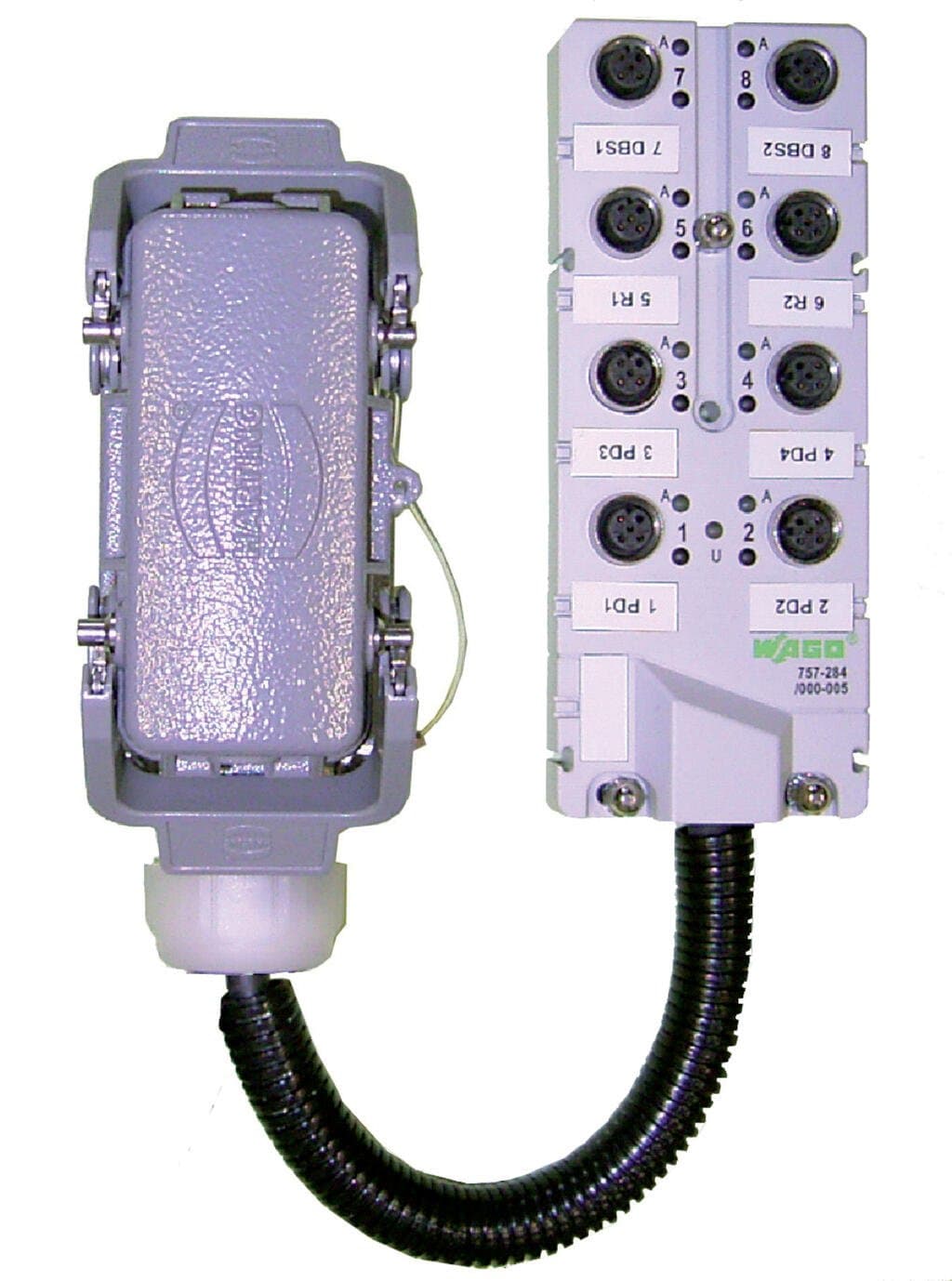

757-701
Selling Points
- 1Reliable Connectivity Solution: The Wago 757-701 ensures consistent signal distribution in industrial settings.
- 28-Way Configuration: Supports multiple connections, making it versatile for various applications.
- 3Durable Design: Constructed to withstand harsh environments, ensuring long-lasting performance.
- 4RoHS Compliant: Meets environmental standards, ensuring eco-friendliness and regulatory compliance.
- 5Easy Integration: Designed for seamless integration into existing systems, reducing setup time and complexity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Supply voltage | 10 … 30?VDC;?Rated voltage: 32 V ~ rms | Current carrying capacity (signal connections) | 2A |
Current carrying capacity (supply connections) | 9A | Signal characteristics | PNP |
Connection technology: inputs / outputs | 8 x M12 socket; 4-pole; incl. ground | Connection technology: trunk cable | 1 x Fixed connecting cable |
Weight | 800g | Bending radius | 10 x cable diameter (min.) for flexible application |
Material properties of the connections | Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles | Cable grip | Alkali-resistant PVDF/TPE materials |
Ambient temperature (operation) | -25 … +80 °C | Ambient (operating) temperature (dynamic) | -5 … +80 °C |
Ambient (operating) temperature (static) | -40 … +90 °C | Pollution degree | 3 per VDE 0110 |
Product Group | 23 (I/O passive and accessories) | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821290766 |
Customs tariff number | 8536694040 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 39465b1b-03df-4a3c-b110-4206317114c3 |
SCIP notification number (Belgium) | 7ac5c930-fac5-4ca0-ab7f-e1fc3ddb981d | SCIP notification number (Bulgaria) | 10ea0736-3ce0-405e-a6e1-830e2c3ab260 |
SCIP notification number (Czech Republic) | 16e89b21-fa47-48cc-b434-d4c5e6161c90 | SCIP notification number (Denmark) | f0ddba8b-1da9-48eb-b822-ada94c633053 |
SCIP notification number (Finland) | 1828b453-924d-4f4d-afbd-0925c80d0500 | SCIP notification number (France) | 7e97c000-6ad3-491c-bb59-7b53737843ef |
SCIP notification number (Germany) | 501668f7-6bd2-4f41-b707-d311c1f5a69a | SCIP notification number (Hungary) | 28713797-0dad-41ba-900a-0a830dcbeca6 |
SCIP notification number (Italy) | 6634e49b-b840-48c0-9ff9-2837a24e67e6 | SCIP notification number (Netherlands) | 745ba7fc-ca63-4f93-afa5-6884f9523ce4 |
SCIP notification number (Poland) | da2aa475-4890-4ca6-b53e-46e07d9e8efe | SCIP notification number (Romania) | 7638d3ba-47c3-4078-a058-390507c12adc |
SCIP notification number (Sweden) | cb5d562b-6a38-46d3-91ef-f32c4c2cf67a |
Specifications may be subject to change without notice
