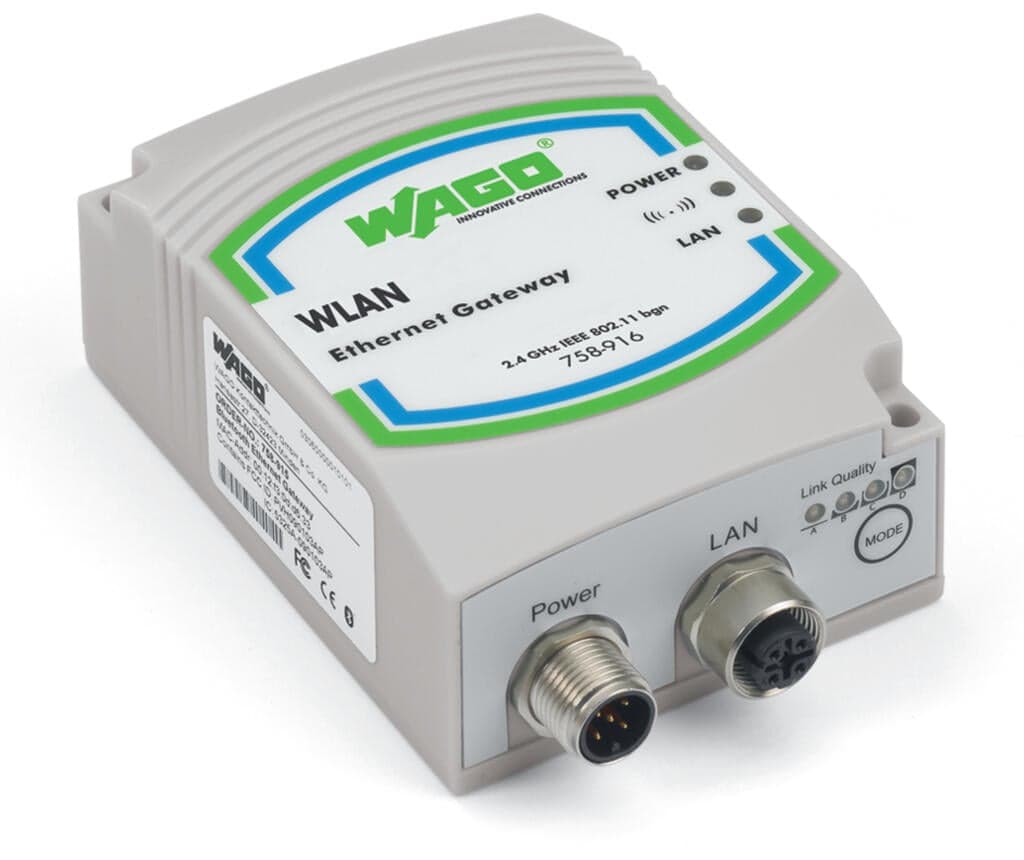

Product Model
758-916
Selling Points
- 1IP65 housing for use in harsh environments.
- 2Simple, push-button operation for fast connection.
- 3Configure settings via web interface.
- 4Supports Ethernet protocols like PROFINET, MODBUS/TCP, and Ethernet/IP.
- 5Operates on 24 VDC (9–30 V) or Power over Ethernet (PoE).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Security encryption | None, WEP64, WEP128, TKIP, AES/CCMP | Radio technology | IEEE 802.11 bgn |
Frequency band | License-free, ISM band, 2.4 GHz | Topology | Peer-to-peer connection |
Security authentication | Open, Shared, WPA/WPA2 PSK, LEAP, PEAP | Transmission range | up to 400?m |
Antenna | integrated | Number of inputs | 1 (trigger input: 9 … 30?VDC) |
Supply voltage | 24?VDC (9 … 30?V) | Standards/specifications | R&TTE (Europe) |
Connection technology: communication/fieldbus | ETHERNET:?1 x M12 socket; B-coded | Connection technology: supply | 1 x M12 plug; A-coded |
Width | 66?mm?/ 2.598?inches | Height | 36.2?mm?/ 1.425?inches |
Depth | 91?mm?/ 3.583?inches | Weight | 120g |
Conformity marking | CE | Ambient temperature (operation) | -30 … +65 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP65 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Product Group | 27 (special components I/O) | eCl@ss 10.0 | 27-14-31-36 |
eCl@ss 9.0 | 19-17-01-03 | ETIM 9.0 | EC001099 |
ETIM 8.0 | EC001099 | ECCN | 5A992.C |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | SE | GTIN | 4050821478805 |
Customs tariff number | 8517620090 | End of Sale | 2020-03-11 |
End of Production | 2020-03-16 | End of Delivery | 2020-03-26 |
End of Service and Repair | 2022-03-11 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
