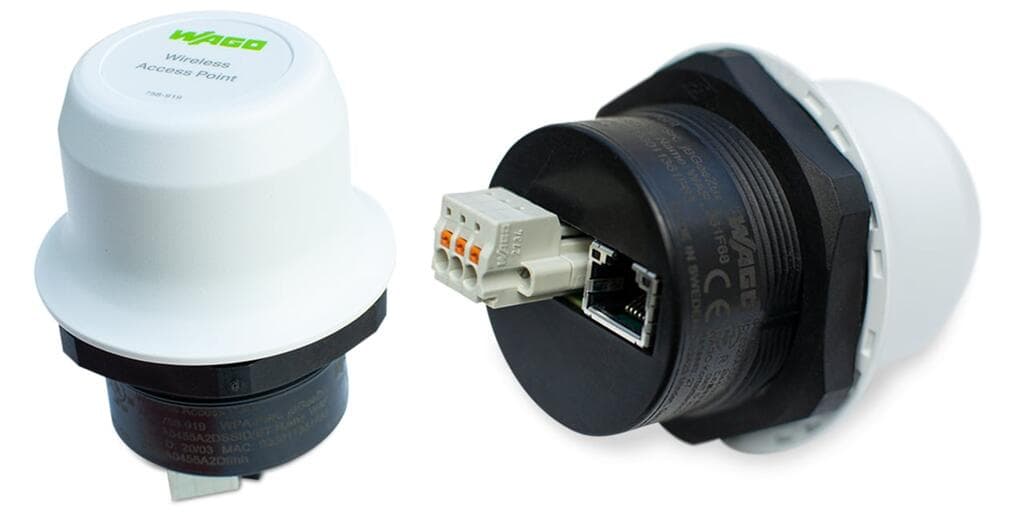

Product Model
758-919
Selling Points
- 1Dual-band WiFi (2.4GHz/5GHz) and Bluetooth 2.1/4.0 (Low Energy) support.
- 2Robust security with NIST-Compliant and FIPS-Approved encryption.
- 3Supports various protocols including PROFINET, Modbus/TCP, and EtherNet/IP.
- 4Through-panel mounting with M50 screw and nut for easy installation.
- 5IP67 protection class for durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The maximum range in the field decreases with use in buildings and changes depending on the building materials used and the spatial geometry. Therefore, range specifications within buildings can only represent a typical value that can normally be achieved. More detailed information is available in the manual. | Security encryption | Bluetooth?2.1: NIST-compliant; FIPS-approved (authentication and authorization, encryption and data security, privacy and discretion);Bluetooth?4.0 (Low Energy): AES-CCM encryption |
Radio technology | Bluetooth?2.1 | Frequency band | ISM band, 2.4 GHz (Bluetooth?, WLAN); ISM band, 5 GHz (WLAN) |
Security authentication | WLAN: WEP 64/128; WPA; WPA-PSK and WPA2; TKIP and AES/CCMP; LEAP; PEAP including MS-CHAP | Transmission range | up to 200?m |
Antenna | Internal 2.4 GHz and 5 GHz broadband antenna | Configuration options | Web-Based Management |
Supply voltage | 19 … 36?VDC | Connection technology: communication/fieldbus | 1 x RJ-45 |
Connection technology: supply | 1 x Female connector; 3-pole | Height | 75?mm |
Mounting type | M50 through-panel installation (cut-out = 50.5 mm) | Weight | 84g |
Conformity marking | CE | Ambient temperature (operation) | -40 … +65 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP67 |
Note on protection type | Top (outside of unit): IP66/IP67/UL NEMA 4X ; Base (inside of unit): IP21 | ETIM 9.0 | EC000816 |
ETIM 8.0 | EC000816 | ECCN | 5A992.C |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | SE | GTIN | 4066966110579 |
Customs tariff number | 8517620090 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
