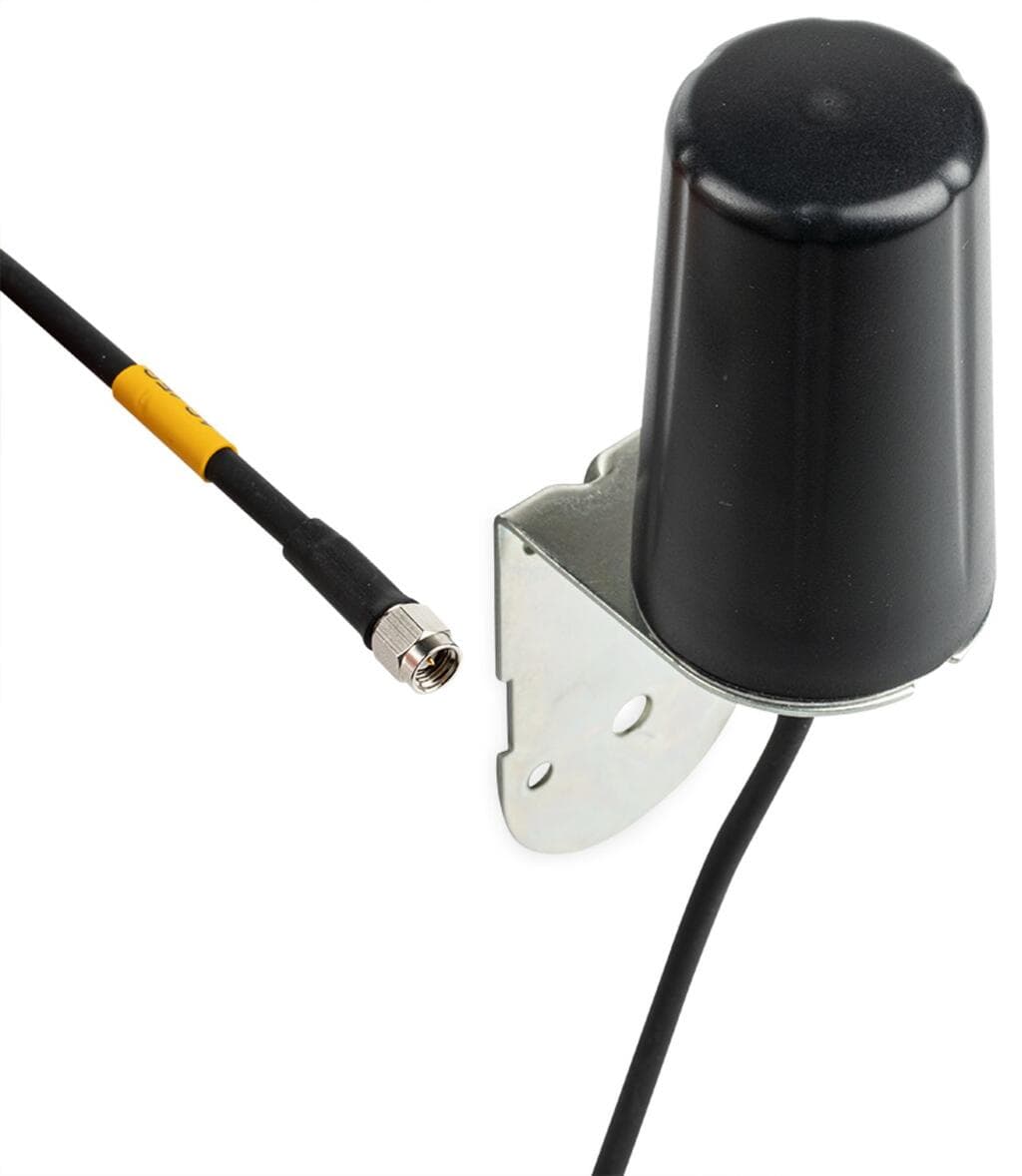

Product Model
758-974/000-001
Selling Points
- 1Covers GSM, UMTS, LTE, Bluetooth, and WLAN frequencies.
- 2Includes a 2-meter cable for extended reach.
- 3Equipped with a male SMA connector for easy connection.
- 4Operates on 698-960 MHz and 1710-6000 MHz.
- 5Compatible with 2G, 3G, 4G, and 5G networks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Radio technology | GSM | Frequency band | 617 … 960?MHz; 1710 … 6000?MHz |
Gain | 617 … 960 MHz: 1dBi; 1710 … 2700 MHz: 4dBi; 3400 … 3800 MHz: 8dBi; 4900 … 6000 MHz: 9dBi | Mounting type | Wall-mount |
Cable type | CS29 | Connector | SMA plug |
Length of connection cable | 2m | Weight | 252g |
Ambient temperature (operation) | -40 … +85 °C | Protection type | IP66 |
ETIM 9.0 | EC001698 | ETIM 8.0 | EC001698 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | bag | Country of origin | CN |
GTIN | 4066966093964 | Customs tariff number | 8529104040 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
