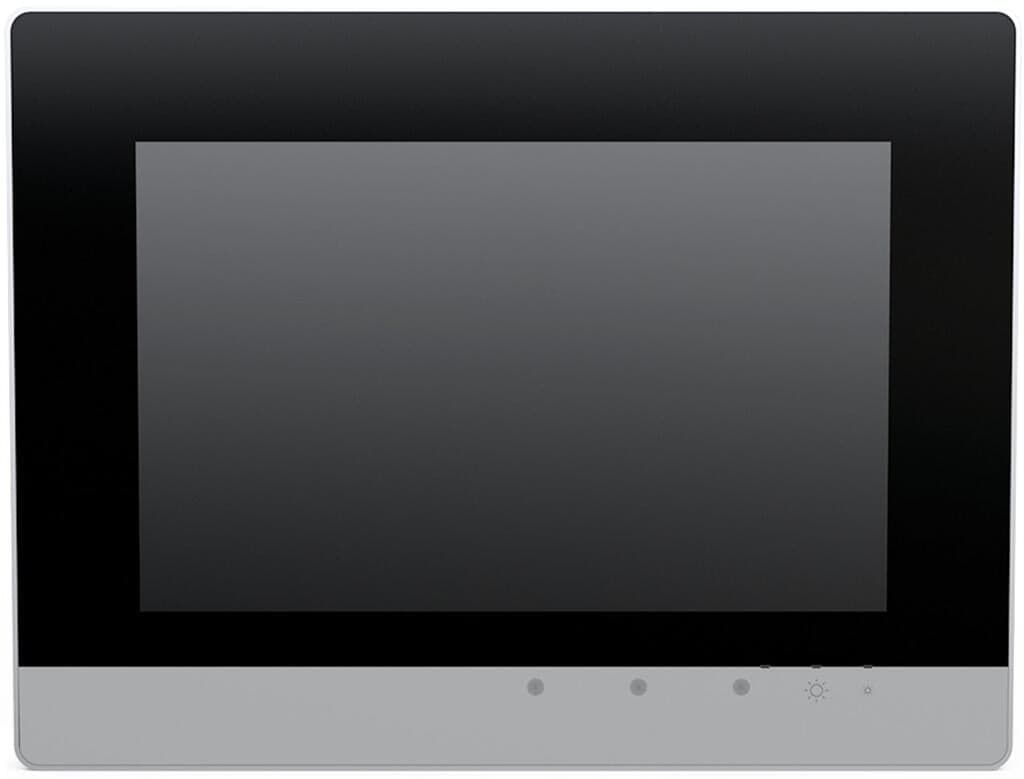

Product Model
762-4204/8000-001
Selling Points
- 1High-Resolution Display: 10.1" resistive touchscreen with 1280 x 800 pixels for clear visibility.
- 2Robust Communication: Supports EtherNet/IPTM, Modbus TCP, EtherCAT, and BACnet/IP protocols.
- 3Durable Design: IP65 protection rating for front side and IP20 for rear side, ensuring reliability in harsh environments.
- 4Versatile Connectivity: 2 x USB ports and 2 x Ethernet ports for seamless integration with various devices.
- 5Advanced Operating System: Real-time Linux with RT-Preempt patch for efficient performance in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Display diagonal | 10.1 inches (25.7 cm) | Display | Resistive touchscreen |
Display colors | 16 million colors | Graphics resolution | (1280 x 800) px |
Contrast ratio | 800:1 | Viewing angle (horizontal/vertical) | 85° / 85° |
Brightness | 800cd/m<sup>2</sup> | Visualization | Web server |
ETHERNET protocols | DHCP | Communications | EtherNet/IPTMAdapter (slave), library fore!RUNTIME(prerequisite:e!RUNTIMEPLC 600 license) |
Operating system | Real-time Linux (with PREEMPT_RT patch) | Processor | ARM?Cortex?A9 Quad-Core 1.0 GHz |
Programming environment | e!COCKPIT(based on CODESYS V3) | Main memory (RAM) | 2,048MB |
Internal memory (flash) | 4096MB | Program memory | 32?MB |
Data memory | 128?MB | Type of memory card | microSD (max. 2 GB); microSDHC (max. 32 GB) |
Indicators | Three-color LED (red, green, blue) | Control Elements | Resistive touch panel, two capacitive keys, proximity sensor |
Supply voltage | 24 VDC, SELV (18 … 31.2 V); with reverse voltage protection | Operating power | 11.6?W, without USB load; 16.8?W, with USB load |
Connection technology: communication/fieldbus | Modbus (TCP):?2 x RJ-45;?2 x USB 2.0 host (type A) | Connection technology: supply | 1 x Included female connector (734-103) with three CAGE CLAMP? connections |
Width | 293?mm?/ 11.535?inches | Height | 223?mm?/ 8.78?inches |
Depth | 58?mm?/ 2.283?inches | Panel cutout (W x H) | (278 x 208) mm |
Mounting type | Clamping elements (included) or VESA mount (4 x M4x8) | Front panel | Polyester film |
Fire load | 0.003MJ | Weight | 1509g |
Ambient temperature (operation) | -20 … +55 °C (when mounted vertically; ?20 … +50 °C, other mounting positions) | Ambient temperature (storage) | -20 … +80 °C |
Protection type | IP65 | Note on protection type | IP65 (front side); IP20 (rear side), per EN 60529 |
Relative humidity (without condensation) | 90% | ETIM 9.0 | EC001414 |
ETIM 8.0 | EC001414 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143839402 |
Customs tariff number | 8471410150 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
