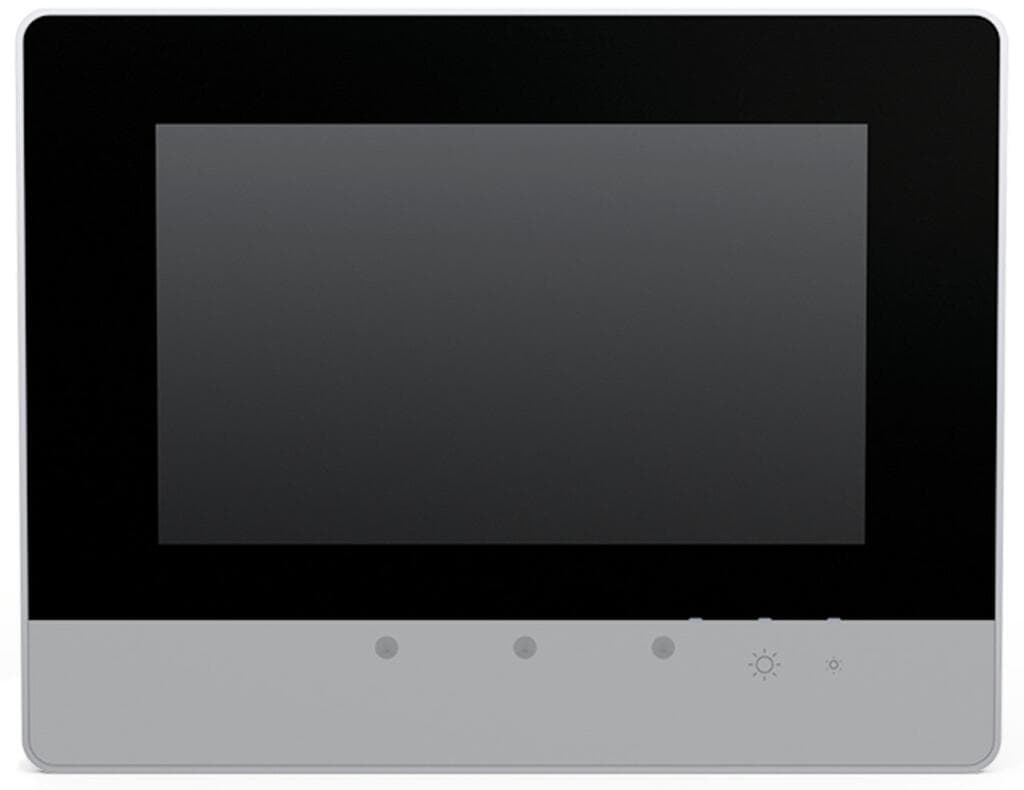

Product Model
762-4303/8000-002
Selling Points
- 1High-Resolution Display: 7-inch 800x480 WVGA analog resistive display.
- 2Multi-Protocol Support: Compatible with Modbus RTU, Modbus TCP, Ethernet/IP, EtherCAT, CANopen, RS-232, and RS-485.
- 3Robust Connectivity: Two Ethernet ports, two USB ports, CAN interface, RS-232/485 interface, and four digital inputs/outputs.
- 4Power-Failure-Proof Storage: Includes power-failure-proof storage component for data integrity.
- 5Durable Design: IP65 rated and operates in ambient temperatures ranging from -20°C to +50°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Display diagonal | 7 inches (17.8 cm) | Display | Resistive touchscreen |
Display colors | 16 million colors | Graphics resolution | (800 x 480) px |
Contrast ratio | 800:1 | Viewing angle (horizontal/vertical) | 89° / 89° |
Brightness | 450cd/m<sup>2</sup> | Visualization | Web server |
ETHERNET protocols | DHCP | Communications | Web browser |
Operating system | Real-time Linux (with PREEMPT_RT patch) | Processor | ARM?Cortex?A9 Quad-Core 1.0 GHz |
Programming environment | CODESYS V3.5, Firmware Release 24 or higher | Main memory (RAM) | 2,048MB |
Internal memory (flash) | 4096MB | Program memory | 32?MB |
Data memory | 128?MB | Non-volatile software memory | 128.Kbytes |
Type of memory card | microSD card | Indicators | Three-color LED (red, green, blue) |
Control Elements | Resistive touch panel, two capacitive keys, proximity sensor | Supply voltage | 24 VDC, SELV (18 … 31.2 V); with reverse voltage protection |
Operating power | 8.8?W, without USB load; 13.9?W, with USB load | Connection technology: communication/fieldbus | Modbus (TCP, UDP): 2 x RJ-45; EtherNet/IPTM: 2 x RJ-45; CANopen: 1 x D-sub 9 plug; Modbus (UDP): 2 x RJ-45; RS-232 + RS-485/-422 serial interface: 1 x D-sub 9 socket; USB: 2 x USB 2.0 host (type A) |
Connection technology: supply | 1 x Included female connector (734-103) with three CAGE CLAMP? connections | Width | 213?mm?/ 8.386?inches |
Height | 167?mm?/ 6.575?inches | Depth | 78?mm?/ 3.070?inches |
Panel cutout (W x H) | (198 x 152) mm | Mounting type | Clamping elements (included) or VESA mount (4 x M4x8) |
Front panel | Polyester film | Fire load | 0.003MJ |
Weight | 1048g | Ambient temperature (operation) | -20 … +55 °C (when mounted vertically; ?20 … +50 °C, other mounting positions) |
Ambient temperature (storage) | -20 … +80 °C | Protection type | IP65 |
Note on protection type | IP65 (front side); IP20 (rear side), per EN 60529 | Relative humidity (without condensation) | 90% |
ETIM 9.0 | EC001414 | ETIM 8.0 | EC001414 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143825313 | Customs tariff number | 8471410150 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
