Product Model

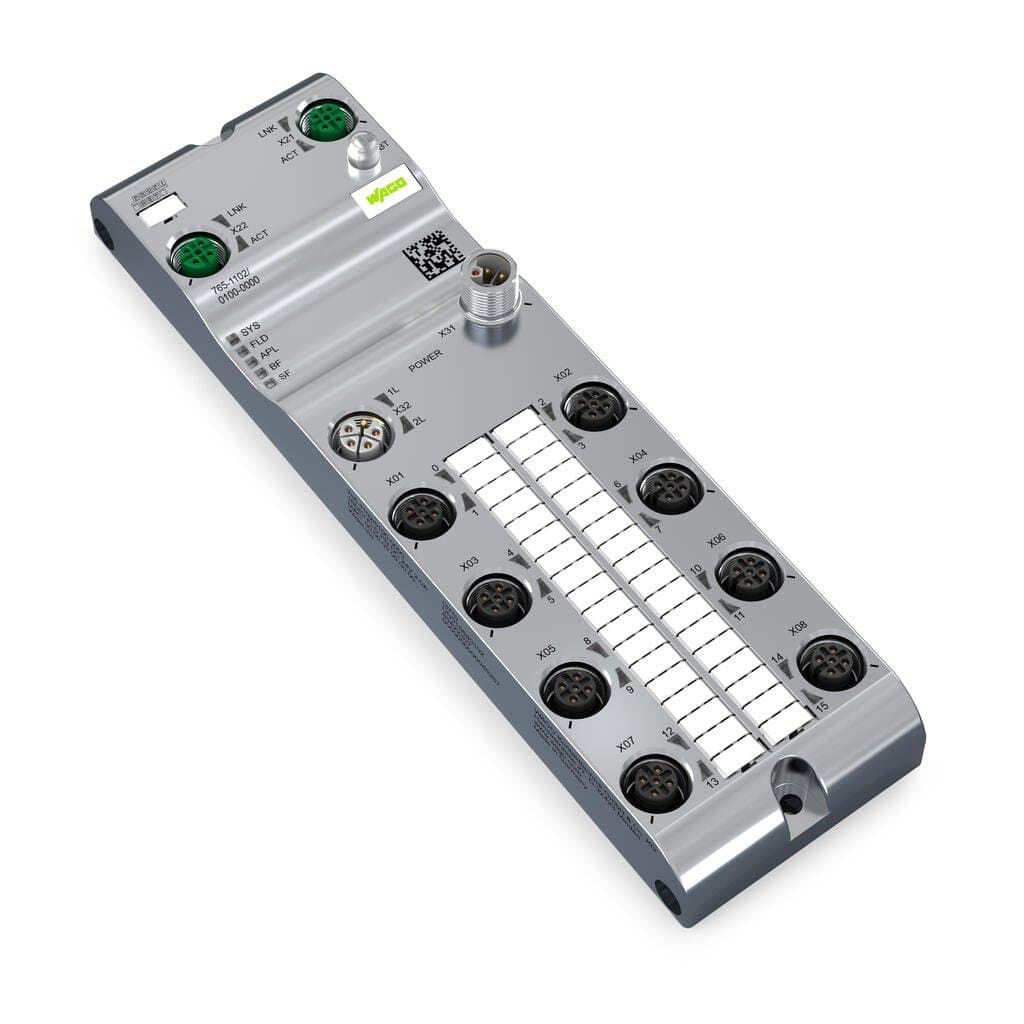

765-1102/100-000
Selling Points
- 116-Channel Digital I/O: Supports up to 16 digital inputs and outputs for versatile control.
- 2Profinet Connectivity: Seamlessly integrates with Profinet networks for efficient data transfer.
- 3DC 24 V / 2.0 A Power: Operates on 24 VDC with a maximum current of 2.0 A.
- 48xM12 Connection: Features 8 A-coded M12 connectors for reliable and dust-tight connections.
- 5IP67 Protection: Ensures robust operation in harsh environments with IP67 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60?mm?/ 2.362?inches | Height | 30?mm?/ 1.181?inches |
Depth | 210?mm?/ 8.268?inches | Weight | 610g |
Conformity marking | CE | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP67 |
Protection class | III per EN 61140, IEC 61140, VDE 0140-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Pollution degree | 3 (EN 60664-1) | Overvoltage category | II (EN 60664-1) |
Relative humidity (without condensation) | 95% | Vibration resistance | 5g per IEC 60068-2-6 |
Shock resistance | Short-term: 50g/11?ms/half-sine per IEC 60068-2-27; Long-term: 30g/6?ms/half-sine per IEC 60068-2-29 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143949965 |
Customs tariff number | 8537109170 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 316e63bf-d533-4834-8825-c31b9f3fc712 |
SCIP notification number (Belgium) | 6d277029-5347-4551-94f2-fa10a9dd2342 | SCIP notification number (Bulgaria) | 0f7b3fee-4e75-466f-b6fa-eb1c8fe11e07 |
SCIP notification number (Czech Republic) | 2ea176d9-e06c-449f-996a-349c8c2b4731 | SCIP notification number (Denmark) | 56087481-8142-4d00-95fb-c8df62e986a7 |
SCIP notification number (Finland) | 3367c9a8-17ae-4dd2-9ad3-241f92599e77 | SCIP notification number (France) | 86c16806-356b-487d-bd5f-e3760e6a5116 |
SCIP notification number (Germany) | 1858bb32-546d-42d4-94eb-199f5258105c | SCIP notification number (Hungary) | 1a3fe7b0-a232-43d7-926a-05a158eac769 |
SCIP notification number (Italy) | 44e49bf2-baff-4d87-8a23-5eaef40aa15f | SCIP notification number (Netherlands) | b52634b5-7d36-45f8-875d-8b198b46841d |
SCIP notification number (Poland) | afbcb304-812f-4a5f-8078-7fa17279616e | SCIP notification number (Romania) | 8adee8be-e5a8-41be-9b50-d303701ff954 |
SCIP notification number (Sweden) | 9466b03d-8320-4ed2-a9d8-448726aa55f3 | Communications | PROFINET |
Connection technology: communication/fieldbus | 2 x D-coded M12; 4-pole | Interface standard | 10BASE-T/100BASE-TX; potential-free |
Autonegotiation; autocrossover | yes | PROFINET IO features | PROFINET IO device; 2-port switch, LLDP, MRP, SNMP |
Parameter | Input filter | Diagnostics | Undervoltage; Overcurrent; Overload; Overtemperature |
Device functions | Bluetooth? | Visualization | Android/iOS app |
Number of digital inputs | 16 | Number of digital outputs | 16 |
Connection technology: inputs / outputs | 8 x A-coded M12; 5-pole | Signal type (voltage) | 24?VDC |
Input characteristic | Type 3, per IEC 61131-2 | Input filter | 0.2 … 20 ms |
Output current (per channel) | 2 A (typ.) for DO | Supply current per port | 1L/2L: 4 A (max.) |
Connection technology: supply | 2 x L-coded M12; 5-pole | Supply voltage | 24?VDC (18 … 31.2?V);?1L/2L |
Current consumption (max.) | 16000mA | Current consumption (note) | per supply line; overload- and short-circuit-protected |
Reverse voltage protection | Yes |
Specifications may be subject to change without notice
