Product Model

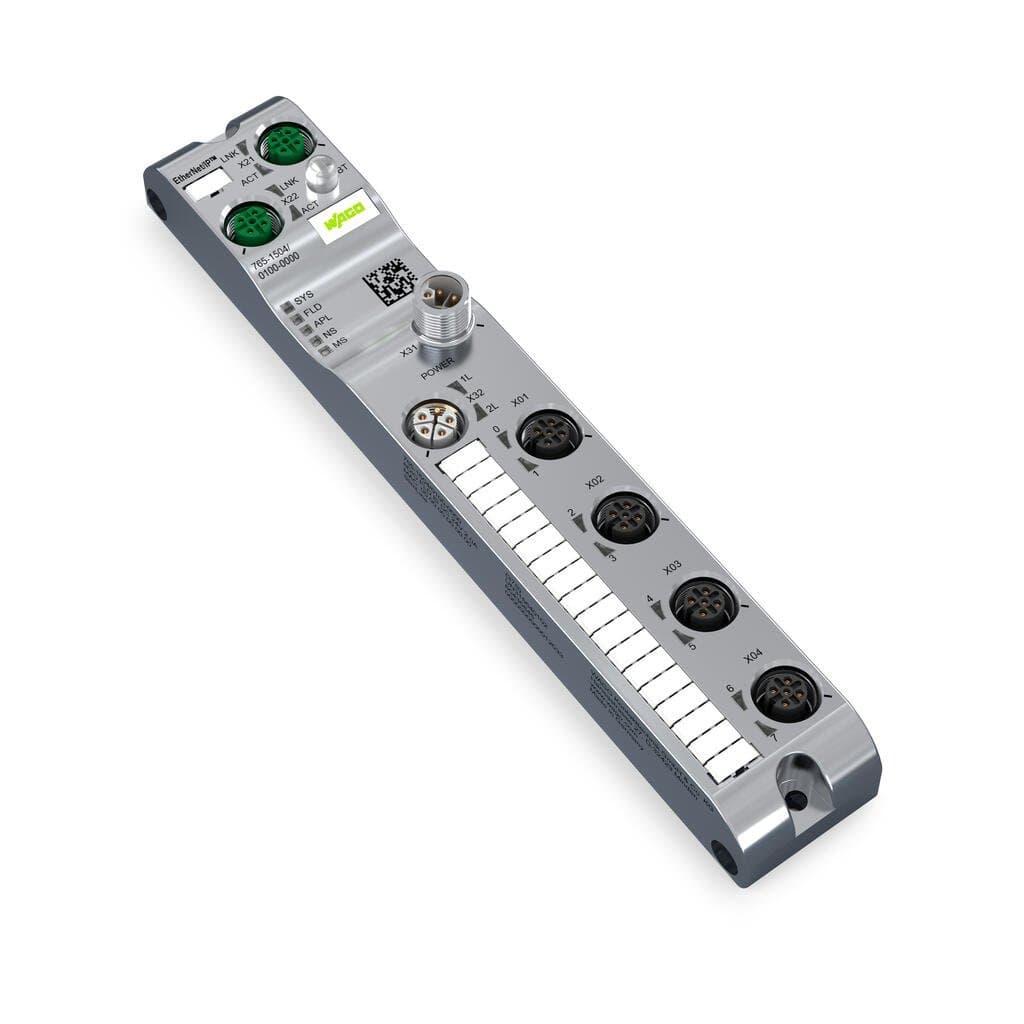

765-1504/100-000
Selling Points
- 18 Channels of Digital I/O: Supports 8 digital inputs and 8 digital outputs for versatile control.
- 2EtherNet/IP Connectivity: Enables seamless communication with industrial control systems via EtherNet/IP.
- 3Robust Design: IP67 rated for harsh environments and operates in temperatures from -25°C to +70°C.
- 424VDC Power Supply: Operates at 24VDC with a nominal current of 2A, suitable for most industrial applications.
- 5M12 Connection: Features 4x M12 connectors (2x D-coded for fieldbus, 4x A-coded for I/O) for secure and reliable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 35?mm?/ 1.378?inches | Height | 30?mm?/ 1.181?inches |
Depth | 210?mm?/ 8.268?inches | Weight | 380g |
Conformity marking | CE | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP67 |
Protection class | III per EN 61140, IEC 61140, VDE 0140-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Pollution degree | 3 (EN 60664-1) | Overvoltage category | II (EN 60664-1) |
Relative humidity (without condensation) | 95% | Vibration resistance | 5g per IEC 60068-2-6 |
Shock resistance | Short-term: 50g/11?ms/half-sine per IEC 60068-2-27; Long-term: 30g/6?ms/half-sine per IEC 60068-2-29 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966063103 |
Customs tariff number | 8537109170 | RoHS Compliance Status | Compliant,No Exemption |
Communications | EtherNet/IPTM | Connection technology: communication/fieldbus | 2 x D-coded M12; 4-pole |
Interface standard | 10BASE-T/100BASE-TX; potential-free | Autonegotiation; autocrossover | yes |
Parameter | Input filter | Diagnostics | Undervoltage; Overcurrent; Overload; Overtemperature |
Device functions | Bluetooth? | Visualization | Android/iOS app |
Number of digital inputs | 8 | Number of digital outputs | 8 |
Connection technology: inputs / outputs | 4 x A-coded M12; 5-pole | Signal type (voltage) | 24?VDC |
Input characteristic | Type 3, per IEC 61131-2 | Input filter | 0.2 … 20 ms |
Output current (per channel) | 2 A (typ.) for DO | Supply current per port | 1L/2L: 4 A (max.) |
Connection technology: supply | 2 x L-coded M12; 5-pole | Supply voltage | 24?VDC (18 … 31.2?V);?1L/2L |
Current consumption (max.) | 16000mA | Current consumption (note) | per supply line; overload- and short-circuit-protected |
Reverse voltage protection | Yes |
Specifications may be subject to change without notice
