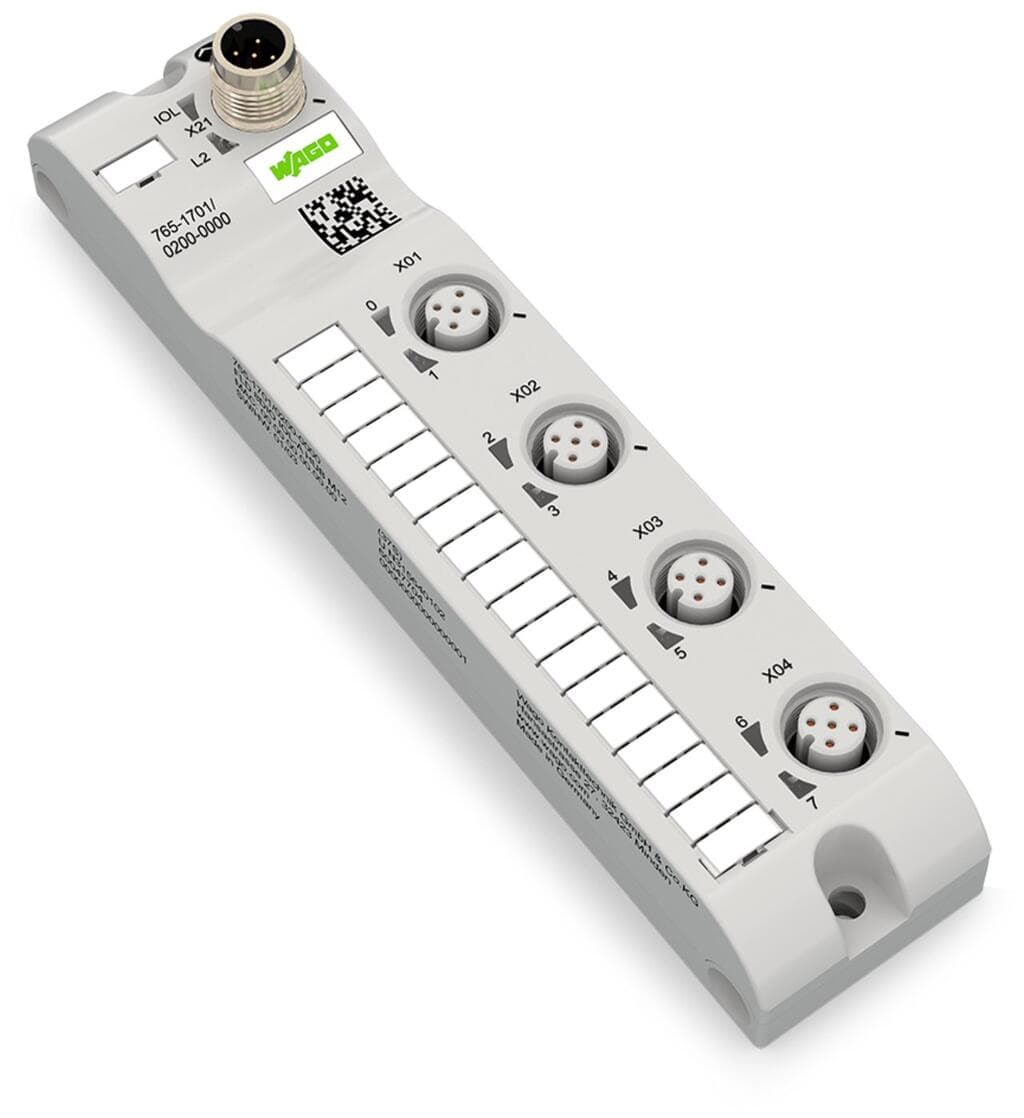

Product Model
765-1701/200-000
Selling Points
- 18-Channel Digital I/O Hub: Supports 8 digital inputs and outputs for versatile automation needs.
- 2IO Link Class A: Ensures reliable communication with IO Link Class A technology.
- 3High-Side Switching: Provides high-side switching for efficient input characteristic.
- 4IP67 Protection: Offers robust protection against dust and water with an IP67 rating.
- 5Configurable DIO: Allows for easy configuration of digital inputs and outputs to suit specific applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 35?mm?/ 1.378?inches | Height | 30?mm?/ 1.181?inches |
Depth | 158.5?mm?/ 6.24?inches | Weight | 110g |
Conformity marking | CE | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP67 |
Protection class | III per EN 61140, IEC 61140, VDE 0140-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Pollution degree | 3 (EN 60664-1) | Overvoltage category | II (EN 60664-1) |
Vibration resistance | 5g per IEC 60068-2-6 | Shock resistance | Short-term: 50g/11?ms/half-sine per IEC 60068-2-27; Long-term: 30g/6?ms/half-sine per IEC 60068-2-29 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143950022 | Customs tariff number | 8537109170 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | ba79137a-a12a-4206-a1de-8d9695b4c5b0 | SCIP notification number (Belgium) | b393b15a-dad4-46ce-89aa-759787880816 |
SCIP notification number (Bulgaria) | d6df19df-cb75-4088-8017-8b17dbccea0a | SCIP notification number (Czech Republic) | f319d3df-97f8-4ff1-a6e5-ba26770115d3 |
SCIP notification number (Denmark) | f5cd2a65-5934-4ed5-bb52-521dd67b45fc | SCIP notification number (Finland) | d21d46fc-5ecf-4f5d-b183-bf445c652b09 |
SCIP notification number (France) | d172c063-1277-4263-8abe-e029b8b4a782 | SCIP notification number (Germany) | be346f4f-5112-4e6c-9842-89506213fc76 |
SCIP notification number (Hungary) | cfe1e7a5-ffa2-4aec-83b0-1abf33c618e8 | SCIP notification number (Italy) | e5d6f8d1-cc58-473f-bbf7-3e41e758fdd3 |
SCIP notification number (Netherlands) | 08749293-24d1-4c4f-96bf-62f0e3675f9e | SCIP notification number (Poland) | 7407a97c-3900-4b9b-a6fb-a1980d72e9e7 |
SCIP notification number (Romania) | cd4855ed-858d-4780-8feb-e09bd6afdb68 | SCIP notification number (Sweden) | 3b58288d-22d7-4fbf-82e5-9941d96d59e9 |
Communications | IO-Link slave (class A) | Connection technology: communication/fieldbus | 1 x A-coded M12; 5-pole |
Parameter | Input filter | Diagnostics | Undervoltage; overcurrent; overload; overtemperature |
Number of digital inputs | 8 | Number of digital outputs | 8 |
Connection technology: inputs / outputs | 4 x A-coded M12; 5-pole | Signal type (voltage) | 24?VDC |
Input characteristic | Type 3, per IEC 61131-2 | Input filter | 0.2 … 20 ms |
Output current (per channel) | 2?A | Connection technology: supply | 1 x A-coded M12; 5-pole; via IO-Link port (1L) |
Supply voltage | 24?VDC (18 … 31.2?V);?1L | Current consumption (max.) | 4000mA |
Current consumption (note) | 1L: 0.2 A + load current | Reverse voltage protection | Yes |
