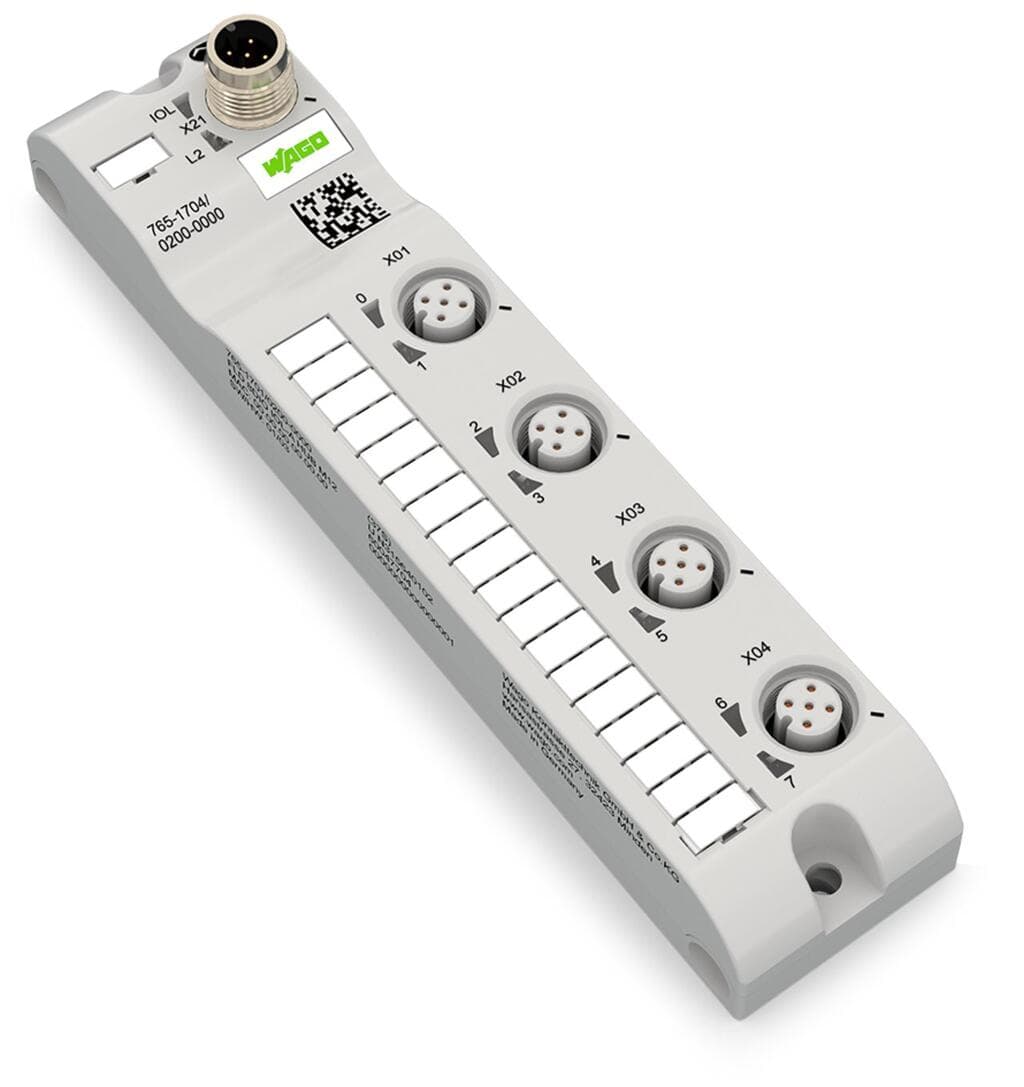

Product Model
765-1704/200-000
Selling Points
- 1Compact design for efficient device connections.
- 2Push-in CAGE CLAMP connection for solid, stranded, and fine-stranded conductors.
- 3Compatible with existing industrial solutions for seamless integration.
- 4Transparent housing for easy handling and visibility.
- 5Ideal for applications requiring fast and reliable electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 35?mm?/ 1.378?inches | Height | 30?mm?/ 1.181?inches |
Depth | 158.5?mm?/ 6.24?inches | Weight | 110g |
Conformity marking | CE | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP67 |
Protection class | III per EN 61140, IEC 61140, VDE 0140-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Pollution degree | 3 (EN 60664-1) | Overvoltage category | II (EN 60664-1) |
Vibration resistance | 5g per IEC 60068-2-6 | Shock resistance | Short-term: 50g/11?ms/half-sine per IEC 60068-2-27; Long-term: 30g/6?ms/half-sine per IEC 60068-2-29 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143949866 | Customs tariff number | 8537109170 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 337822f0-f5bc-4cc3-b413-56e9f6b0b55a | SCIP notification number (Belgium) | fa5aa1d6-ed04-4166-b8b3-91157561565a |
SCIP notification number (Bulgaria) | 49f65230-4492-4354-9a5f-828d32398b3a | SCIP notification number (Czech Republic) | ad336132-2b2d-483b-a7e9-60632066d4f6 |
SCIP notification number (Denmark) | 6d3f3452-5a14-4cff-892c-226fd1fdfdf8 | SCIP notification number (Finland) | d217a5c7-5e33-458e-8579-3523b36aa831 |
SCIP notification number (France) | 1423c9bc-7b74-4053-af3f-0f066b9026a6 | SCIP notification number (Germany) | f2fadd3a-4dbb-40a7-89db-517e4646e238 |
SCIP notification number (Hungary) | 9c79e166-d255-4e69-b7fc-65b2aa886474 | SCIP notification number (Italy) | 32e1d9c0-16b1-448b-99ad-9b34a7309f3d |
SCIP notification number (Netherlands) | 3c349233-88bc-468a-adca-f7de9c2809bb | SCIP notification number (Poland) | c5f4ed8a-840d-457c-9670-b32592ea797b |
SCIP notification number (Romania) | 1e003634-4ee8-4b9d-8bb3-af9cc0577d24 | SCIP notification number (Sweden) | 000137dc-fcb1-40bc-8d66-85a3396148eb |
Communications | IO-Link slave (class B) | Connection technology: communication/fieldbus | 1 x A-coded M12; 5-pole |
Parameter | Input filter | Diagnostics | Undervoltage; overcurrent; overload; overtemperature |
Number of digital inputs | 8 | Number of digital outputs | 8 |
Connection technology: inputs / outputs | 4 x A-coded M12; 5-pole | Signal type (voltage) | 24?VDC |
Input characteristic | Type 3, per IEC 61131-2 | Input filter | 0.2 … 20 ms |
Output current (per channel) | 2?A | Connection technology: supply | 1 x A-coded M12; 5-pole; via IO-Link port (1L/2L) |
Supply voltage | 24?VDC (18 … 31.2?V);?1L/2L | Current consumption (max.) | 4000mA |
Current consumption (note) | 1L: 0.2 A; 2L: 0.1 A; + load current | Reverse voltage protection | Yes |
Specifications may be subject to change without notice
