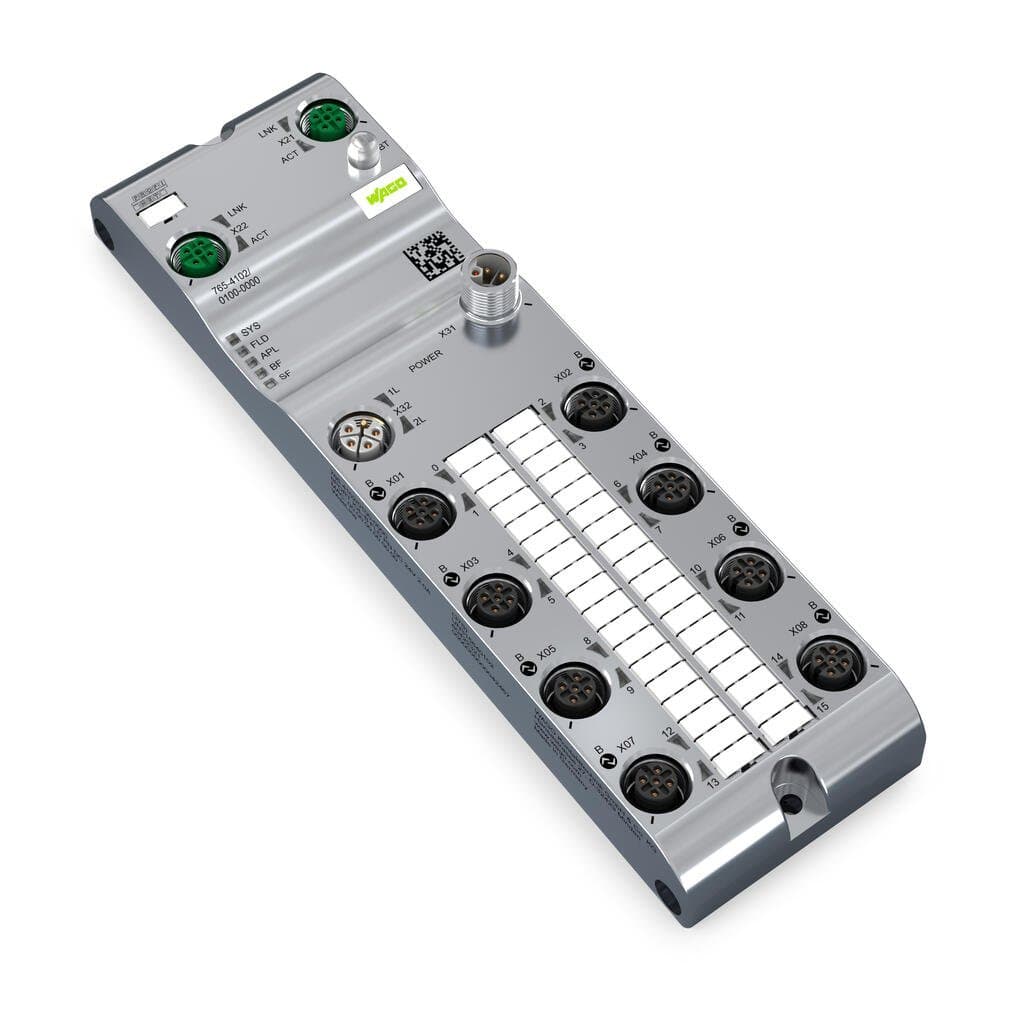

Product Model
765-4102/100-000
Selling Points
- 1The 8-Port IO-Link Master Class B ensures a continuous data flow from sensors to control levels, simplifying configuration and cabling.
- 2Easily send process data and acyclic data for identification, configuration, parameterization, and diagnostics via a 3-wire connection.
- 3Device configuration and parameterization can be automatically restored if a device needs to be replaced, reducing maintenance needs.
- 4IO-Link is an open communication standard that supports various devices, making it versatile for different industrial applications.
- 5With a DC 24 V / 2.0 A power supply and 8x M12 connections, this master ensures reliable and efficient communication in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60?mm?/ 2.362?inches | Height | 30?mm?/ 1.181?inches |
Depth | 210?mm?/ 8.268?inches | Weight | 610g |
Conformity marking | CE | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP67 |
Protection class | III per EN 61140, IEC 61140, VDE 0140-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Pollution degree | 3 (EN 60664-1) | Overvoltage category | II (EN 60664-1) |
Relative humidity (without condensation) | 95% | Vibration resistance | 5g per IEC 60068-2-6 |
Shock resistance | Short-term: 50g/11?ms/half-sine per IEC 60068-2-27; Long-term: 30g/6?ms/half-sine per IEC 60068-2-29 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | ETIM 9.0 | EC001601 |
ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143949798 |
Customs tariff number | 8537109170 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 6d1ad9c1-f95d-4c14-8249-159e28231916 |
SCIP notification number (Belgium) | 5388b1d3-f9db-4c51-b872-077bae18af07 | SCIP notification number (Bulgaria) | fca0a80a-38f1-4a64-9ef2-10822ae109fa |
SCIP notification number (Czech Republic) | 6bee4663-25bd-40e2-8b1c-9fe19ae56536 | SCIP notification number (Denmark) | e38dc57d-6ab8-4cfb-a008-376fe963f05d |
SCIP notification number (Finland) | a055f1db-fe5d-4c80-a685-dcbf2ff4b043 | SCIP notification number (France) | 07c4e187-d4cc-4538-921b-27e445e47d66 |
SCIP notification number (Germany) | d0385843-01ac-4b79-b70b-10a201bea192 | SCIP notification number (Hungary) | 8a954bcc-af15-4622-9259-db1ff4812ce8 |
SCIP notification number (Italy) | 6855686e-55a2-47c5-a76b-df412b67c4b6 | SCIP notification number (Netherlands) | 7283711d-0d9c-49f4-b90d-57207f3c2a2d |
SCIP notification number (Poland) | 59ed2081-7e91-4b91-a03f-43941b9fd638 | SCIP notification number (Romania) | fe084e57-3f78-40c9-9f2a-2002df7edd86 |
SCIP notification number (Sweden) | 80da011c-4c17-4690-a3c1-06fa6eb066e5 | Communications | PROFINET |
Connection technology: communication/fieldbus | 2 x D-coded M12; 4-pole | Interface standard | 10BASE-T/100BASE-TX; potential-free |
Autonegotiation; autocrossover | yes | PROFINET IO features | PROFINET IO device; 2-port switch, LLDP, MRP, SNMP |
Parameter | Input filter | Diagnostics | Undervoltage; Overcurrent; Overload; Overtemperature |
Device functions | Bluetooth? | Visualization | Android/iOS app |
IO-Link master classification | Class B; V1.1 specification | Port-Modus | IO-Link: autoconfig, manual, tool-based |
Cycle time | 400 μs (min.) | Operating mode | IO-Link master, DI or DO (adjustable for pin 4 per port); Supply voltage 2L (fixed for pin 2 per port) |
Number of digital inputs | 8 | Number of digital outputs | 8 |
Connection technology: inputs / outputs | 8 x A-coded M12; 5-pole | Signal type (voltage) | 24?VDC |
Input characteristic | Type 3, per IEC 61131-2 | Input filter | 0.2 … 20 ms |
Output current (per channel) | 2 A (typ.) for DO | Supply current per port | 1L (Pin 1): 1 A for IO-Link; 4 A (max.) for DIO; 2L (Pin 2): 4 A (max.) |
Connection technology: supply | 2 x L-coded M12; 5-pole | Supply voltage | 24?VDC (18 … 31.2?V);?1L/2L |
Current consumption (max.) | 16000mA | Current consumption (note) | per supply line; overload- and short-circuit-protected |
Reverse voltage protection | Yes |
Specifications may be subject to change without notice
