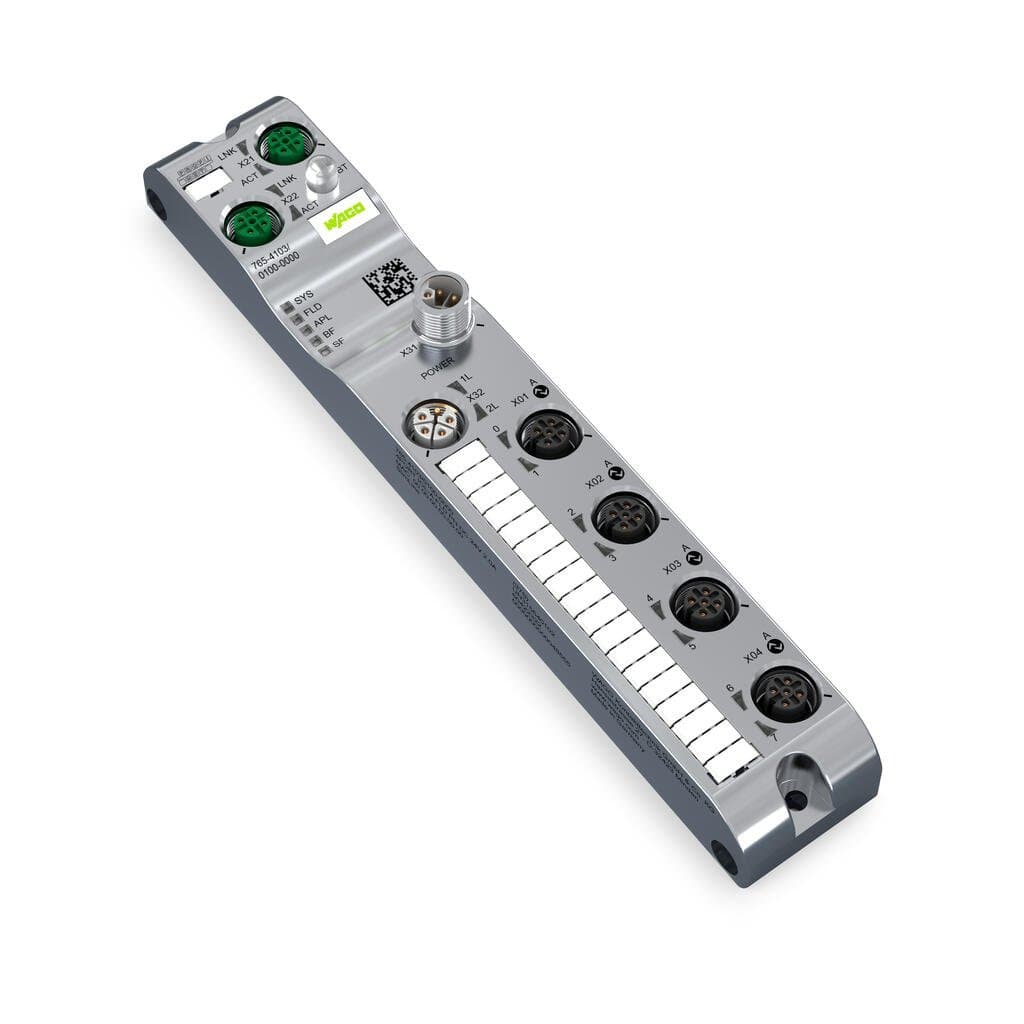

Product Model
765-4103/100-000
Selling Points
- 1SlimLine design for easy integration into industrial systems.
- 2Supports 4xM12 connections for robust data transmission.
- 3Compatible with Profinet and DC 24 V / 2.0 A.
- 4Ensures stable operation in demanding industrial environments.
- 5Simple setup and maintenance with minimal downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 35?mm?/ 1.378?inches | Height | 30?mm?/ 1.181?inches |
Depth | 210?mm?/ 8.268?inches | Weight | 380g |
Conformity marking | CE | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP67 |
Protection class | III per EN 61140, IEC 61140, VDE 0140-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Pollution degree | 3 (EN 60664-1) | Overvoltage category | II (EN 60664-1) |
Relative humidity (without condensation) | 95% | Vibration resistance | 5g per IEC 60068-2-6 |
Shock resistance | Short-term: 50g/11?ms/half-sine per IEC 60068-2-27; Long-term: 30g/6?ms/half-sine per IEC 60068-2-29 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | ETIM 9.0 | EC001601 |
ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143950053 |
Customs tariff number | 8537109170 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 86e87699-35bf-421b-aae9-82dfa4013485 |
SCIP notification number (Belgium) | db867a9a-f8d9-464d-ad64-a7a45495db04 | SCIP notification number (Bulgaria) | 4d9dd066-3b81-4cc7-9c00-c32ded3a83fb |
SCIP notification number (Czech Republic) | 04a03d94-5d26-4be8-b421-7bc9c7adb8a2 | SCIP notification number (Denmark) | a87ca643-d3cf-485f-aa72-1a52aec17a37 |
SCIP notification number (Finland) | 6ef3e993-1e42-4b23-9725-773c5f56216e | SCIP notification number (France) | cbf8b064-7389-4fb8-b8df-5cd045800397 |
SCIP notification number (Germany) | 44226e4c-e4f7-4417-bc7f-57a58032c88e | SCIP notification number (Hungary) | 0995f8de-e098-4508-b4f4-3d6b2c501a01 |
SCIP notification number (Italy) | f2a4bd3d-9539-49d1-afd0-cf6217f26009 | SCIP notification number (Netherlands) | e8e40001-8450-40f0-be32-3d30a9fe503c |
SCIP notification number (Poland) | 2a59b41b-9b72-4fdc-ac41-5b7747f89246 | SCIP notification number (Romania) | 19b92347-ab32-4a6a-b4e1-95593e72449c |
SCIP notification number (Sweden) | 6151591a-75ce-4294-8411-cf77668fc4a2 | Communications | PROFINET |
Connection technology: communication/fieldbus | 2 x D-coded M12; 4-pole | Interface standard | 10BASE-T/100BASE-TX; potential-free |
Autonegotiation; autocrossover | yes | PROFINET IO features | PROFINET IO device; 2-port switch, LLDP, MRP, SNMP |
Parameter | Input filter | Diagnostics | Undervoltage; Overcurrent; Overload; Overtemperature |
Device functions | Bluetooth? | Visualization | Android/iOS app |
IO-Link master classification | Class A; V1.1 specification | Port-Modus | IO-Link: autoconfig, manual, tool-based |
Cycle time | 400 μs (min.) | Operating mode | IO-Link master, DI or DO (adjustable for pin 4 per port); DI or DO (adjustable for pin 2 per port) |
Number of digital inputs | 8 | Number of digital outputs | 8 |
Connection technology: inputs / outputs | 4 x A-coded M12; 5-pole | Signal type (voltage) | 24?VDC |
Input characteristic | Type 3, per IEC 61131-2 | Input filter | 0.2 … 20 ms |
Output current (per channel) | 2 A (typ.) for DO | Supply current per port | 1L: 1 A for IO-Link; 4 A (max.) for DIO |
Connection technology: supply | 2 x L-coded M12; 5-pole | Supply voltage | 24?VDC (18 … 31.2?V);?1L |
Current consumption (max.) | 16000mA | Current consumption (note) | per supply line; overload- and short-circuit-protected |
Reverse voltage protection | Yes |
