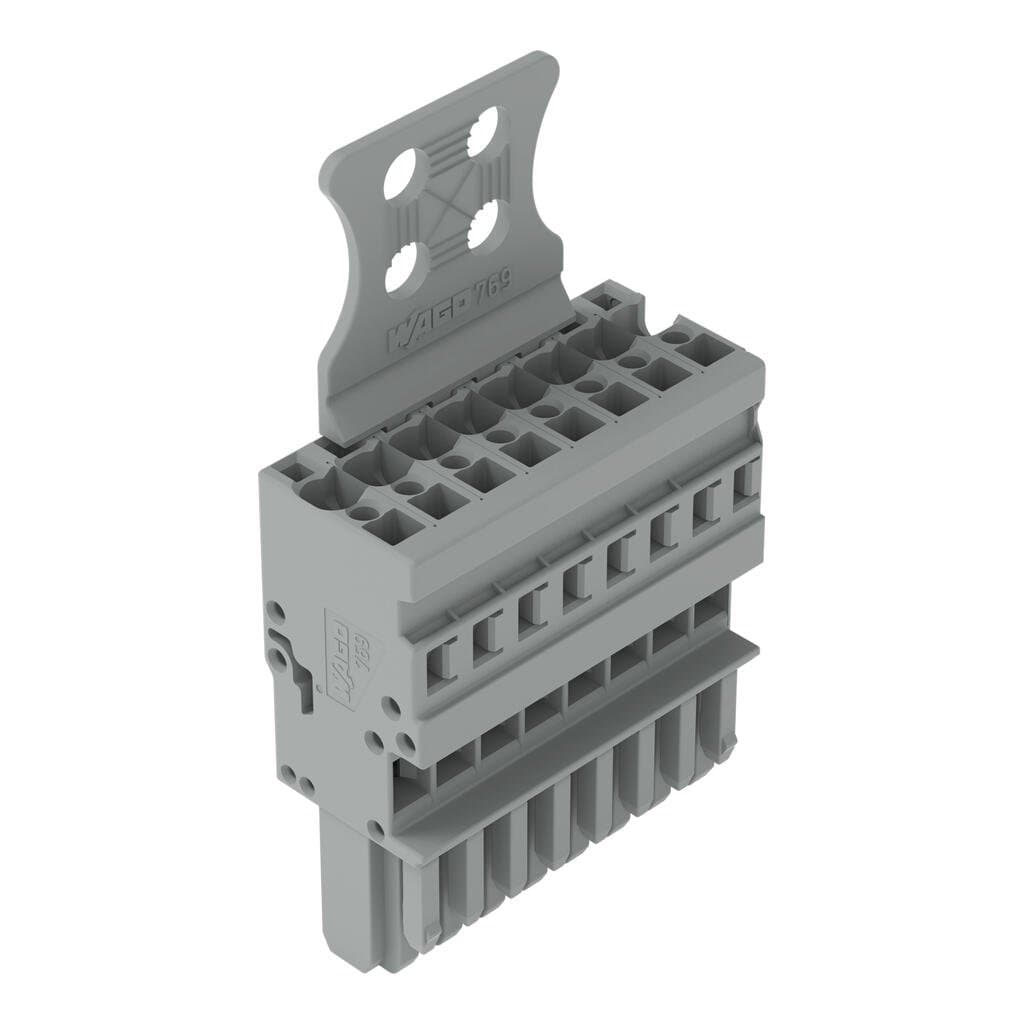

Product Model
769-108/144-000
Selling Points
- 1High-reliability design ensures consistent performance in harsh environments.
- 2Efficient signal transmission with minimal signal loss and distortion.
- 3Easy installation with snap-in connectors for quick setup.
- 4Compatible with a wide range of industrial applications including automation and control systems.
- 5Durable construction withstands extreme temperatures and vibrations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 8 |
Total number of potentials | 8 | Width | 40 mm / 1.575 inches |
Height | 70 mm / 2.756 inches | Height from the surface | 55 mm / 2.164 inches |
Depth | 18.5 mm / 0.728 inches | Module width | 5 mm / 0.197 inches |
Variable coding | Yes | Direct ground contact to DIN-rail/drilled hole/housing | No |
Marking level | Side marking | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | No | Locking lever | Yes |
Strain relief | Strain relief plate | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.63MJ | Halogen-free | Yes |
Weight | 26.7g | Processing temperature | -35 … +85 °C |
Continuous operating temperature | -60 … +105 °C | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10 pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4066966467390 |
Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 61984 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4 mm2 / 28 … 12 AWG |
Fine-stranded conductor | 0.08 … 4 mm2 / 28 … 12 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Number of poles | 8 | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
