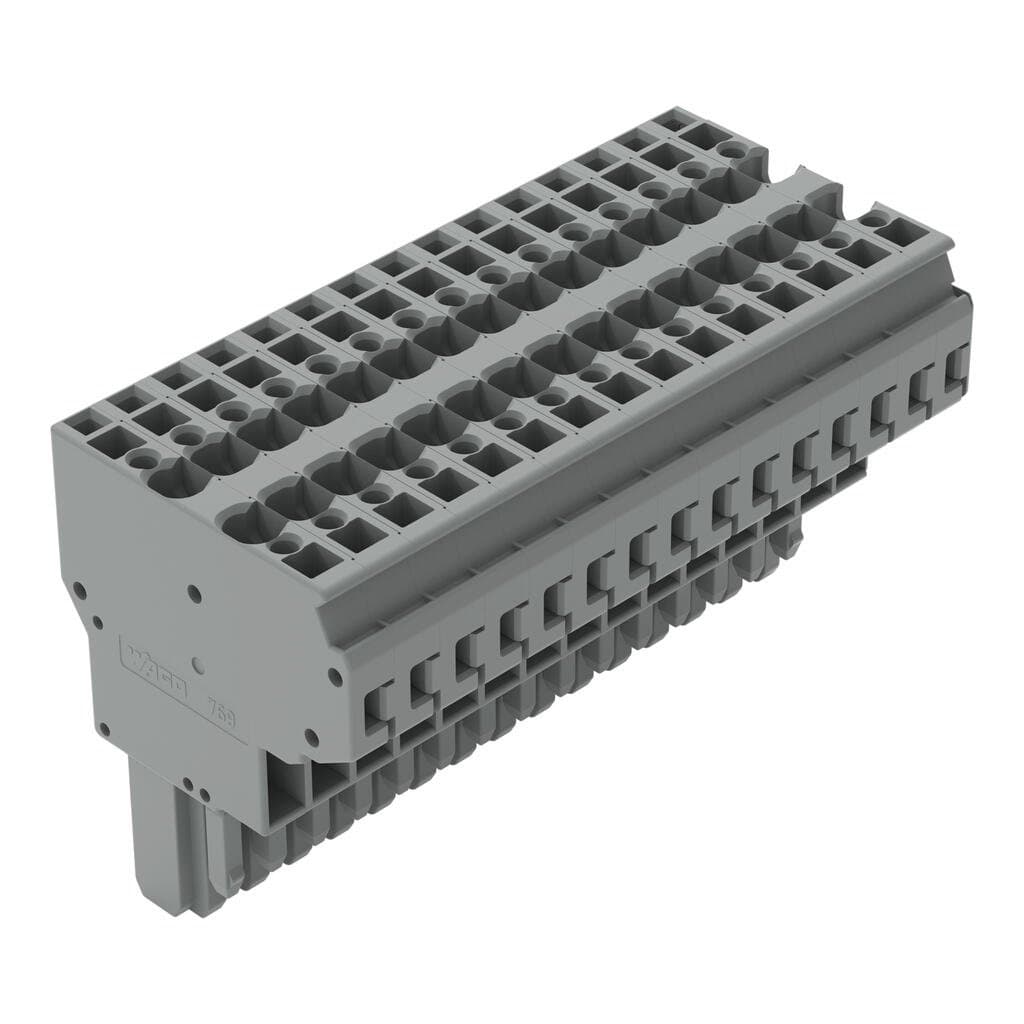

Product Model
769-135
Selling Points
- 1Highly Reliable Electrical Connections: Ensures fault-free installations with CAGE CLAMP technology.
- 2Versatile Connectivity: Supports 15-pole configuration with a 4 mm² cross-section.
- 3Safe Operation: Rated for 500V and 32A, meeting IEC/EN 61984 standards.
- 4Easy Installation: Front-entry wiring and operating tool actuation simplify the connection process.
- 5Durable Construction: Made from high-quality polyamide (PA66) with a gray color, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 30 |
Total number of potentials | 15 | Width | 75?mm?/ 2.953?inches |
Height | 45.2?mm?/ 1.78?inches | Depth | 35.9?mm?/ 1.413?inches |
Module width | 5?mm?/ 0.197?inches | Variable coding | Yes |
Direct ground contact to DIN-rail/drilled hole/housing | No | Marking level | Side marking |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 1.429MJ | Halogen-free | Yes |
Weight | 77.9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4044918474405 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 61984 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 15 |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
