Product Model

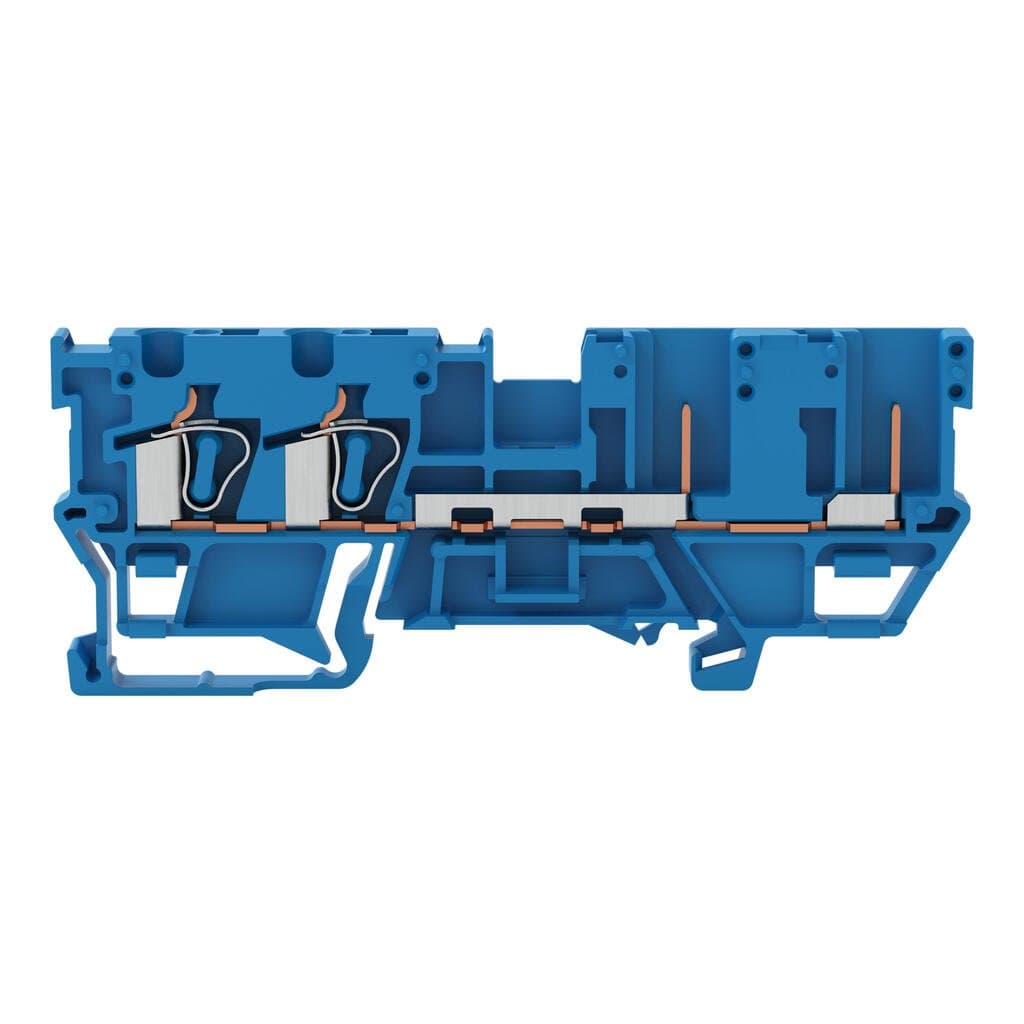

769-171/000-006
Selling Points
- 1Rated for 32A Current: Supports high current applications with reliable performance.
- 2CAGE CLAMP Connections: Easy and secure spring connections for efficient wiring.
- 3DIN-35 Rail Mounting: Compatible with standard DIN-35 rail dimensions (35 x 15 / 35 x 7.5).
- 4Neutral-Through Pole Design: Suitable for neutral-through pole (N) connections in electrical systems.
- 5Wire Size Compatibility: Accommodates wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 1-conductor angled female plugs cannot be used. |
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 87.5?mm?/ 3.445?inches | Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.168MJ | Weight | 10.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4045454871680 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.024W |
Rated current I<sub>N</sub> for specified power loss | 32A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Total number of connection points | 2 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 1 |
