Product Model
769-193/769-319
Selling Points
- 1DIN-Rail Mounting Compatibility: Designed for easy installation on DIN-rail 35 x 15 and 35 x 7.5.
- 22 Jumper Positions: Allows for flexible wiring configurations.

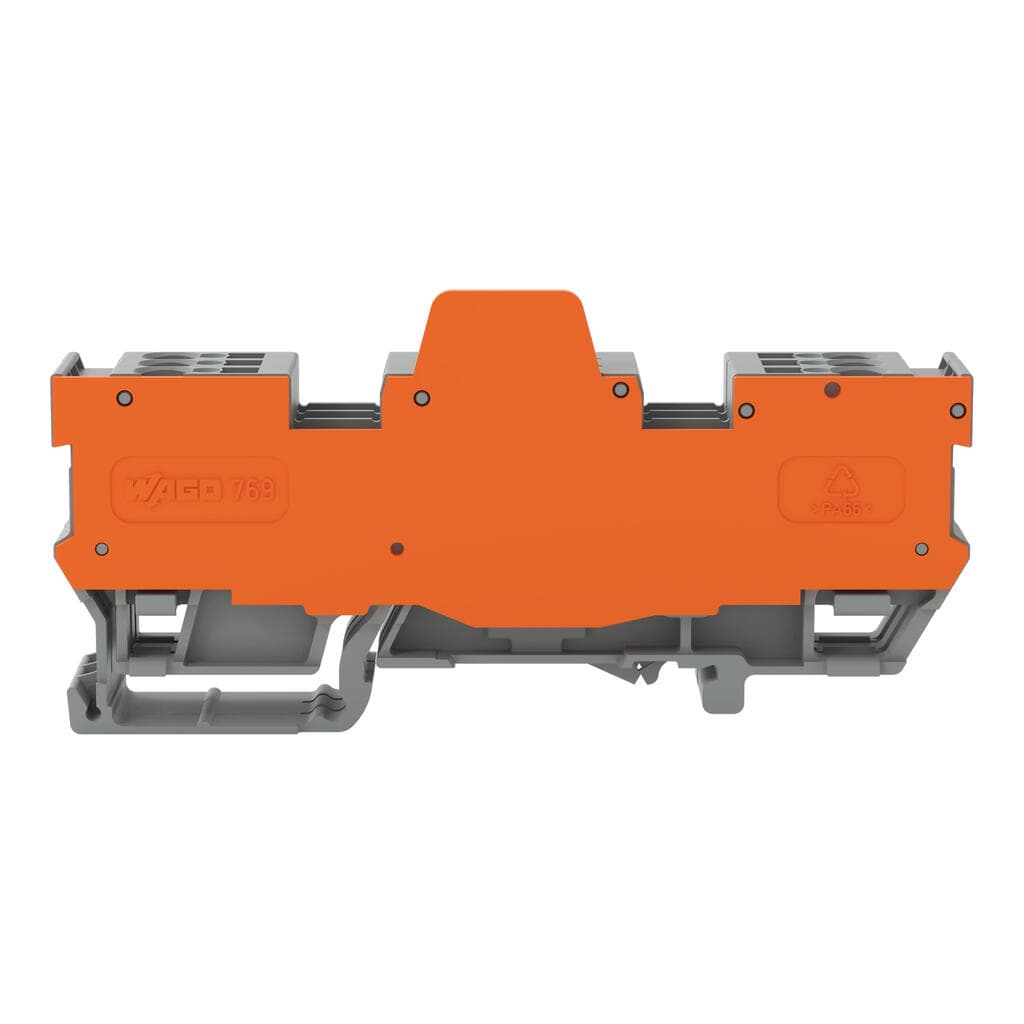

- 3Orange Separator Plate: Enhances visual clarity and organization.
- 46-Pole Configuration: Suitable for a variety of electrical connections.
- 5Rohs Compliant: Meets environmental standards for safe use in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 6 |
Total number of potentials | 6 | Number of levels | 1 |
Width | 16.1?mm?/ 0.634?inches | Height | 87.5?mm?/ 3.445?inches |
Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.569MJ |
Weight | 26.7g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918935258 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 0.256W |
Rated current I<sub>N</sub> for specified power loss | 16A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 6 | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
