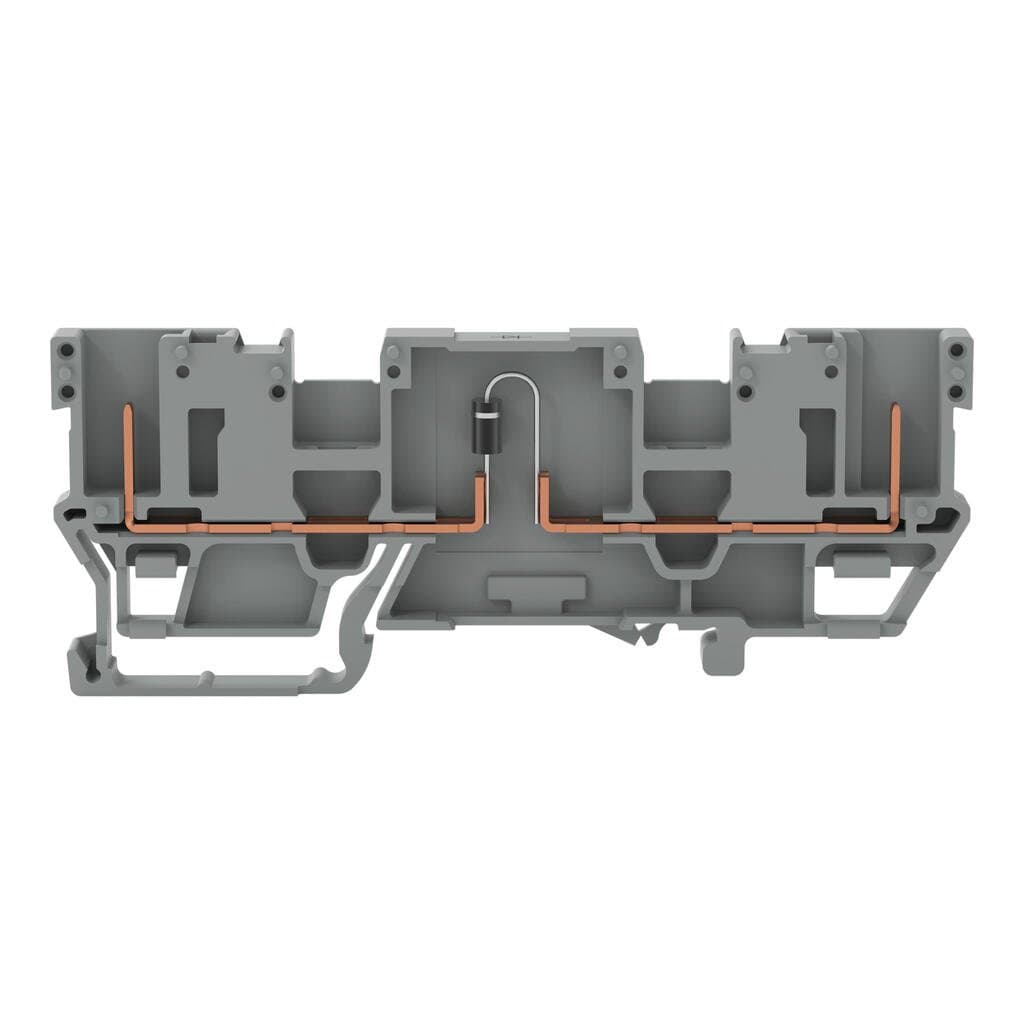

Product Model
769-208/281-410
Selling Points
- 1Compact design for DIN-rail mounting (35 x 15 and 35 x 7.5).
- 2Includes a diode (1N4007) with anode on the left side.
- 3Features 2 jumper positions for versatile connectivity.
- 4Rated current: 0.5A, suitable for various electrical applications.
- 5Gray color, made from durable polyamide (PA) 66 material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 87.5?mm?/ 3.445?inches | Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.17MJ | Weight | 7.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454198367 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | b4f2a4dd-809c-42d3-9de3-f0f90b1b0146 |
SCIP notification number (Belgium) | 73801883-2a18-42a5-9a6d-490ee4328ea5 | SCIP notification number (Bulgaria) | 38eb3c80-c533-4791-95d8-c56457b7f0e6 |
SCIP notification number (Czech Republic) | 1b460834-00f0-4b55-85b0-b42a7049c1dd | SCIP notification number (Denmark) | 5958448d-0b32-4856-ae4b-df539c9e3b3a |
SCIP notification number (Finland) | 12d0bf27-1803-40cd-aabf-997cfe4e48bf | SCIP notification number (France) | ad7af602-c282-4d33-9f7b-316973f37925 |
SCIP notification number (Germany) | 6a66335b-eb5f-43f8-a8ce-32e9d6287493 | SCIP notification number (Hungary) | 010682df-a8bb-4839-a8d1-84e66cc4408d |
SCIP notification number (Italy) | 724362d8-7981-4495-b9dd-d9e6ab7d1a4e | SCIP notification number (Netherlands) | ede615d2-80db-4776-923f-30954f130e21 |
SCIP notification number (Poland) | 5ed9dbee-ea0e-410b-8954-abac6e94b13d | SCIP notification number (Romania) | f7a6a3ab-688b-43a6-8346-205d5b38e73c |
SCIP notification number (Sweden) | 6058ccba-4756-4051-a0da-ce62f024e254 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
