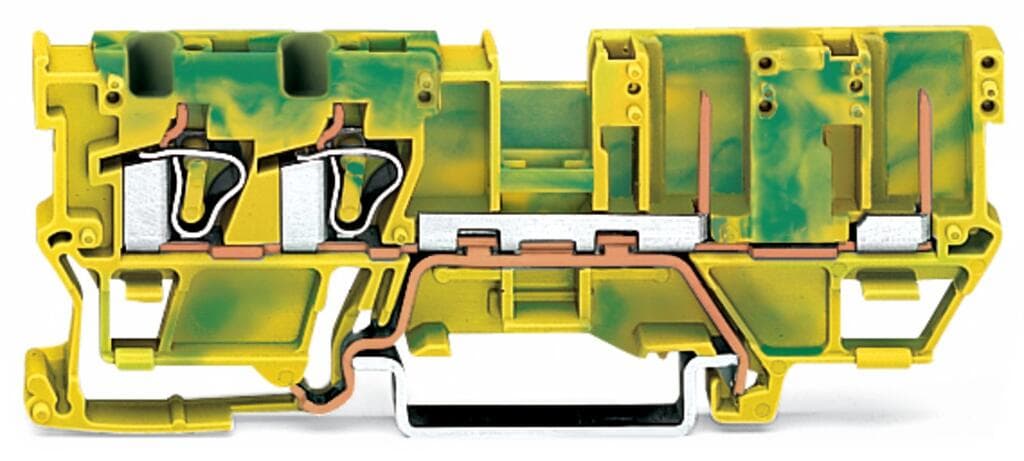

Product Model
769-217
Selling Points
- 1Durable CAGE CLAMP technology ensures secure and reliable connections.
- 2Compatible with high voltage applications up to 800 V.
- 3Easy conductor termination without tools for solid conductors.
- 4Maintenance-free operation due to long-term consistency of electrical and mechanical properties.
- 5Ideal for various industrial applications, including rail and offshore use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 1-conductor angled female plugs cannot be used. |
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 87.5?mm?/ 3.445?inches | Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.17MJ | Weight | 11.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918827799 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Total number of connection points | 2 | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Number of connection points 2 | 1 |
Specifications may be subject to change without notice
