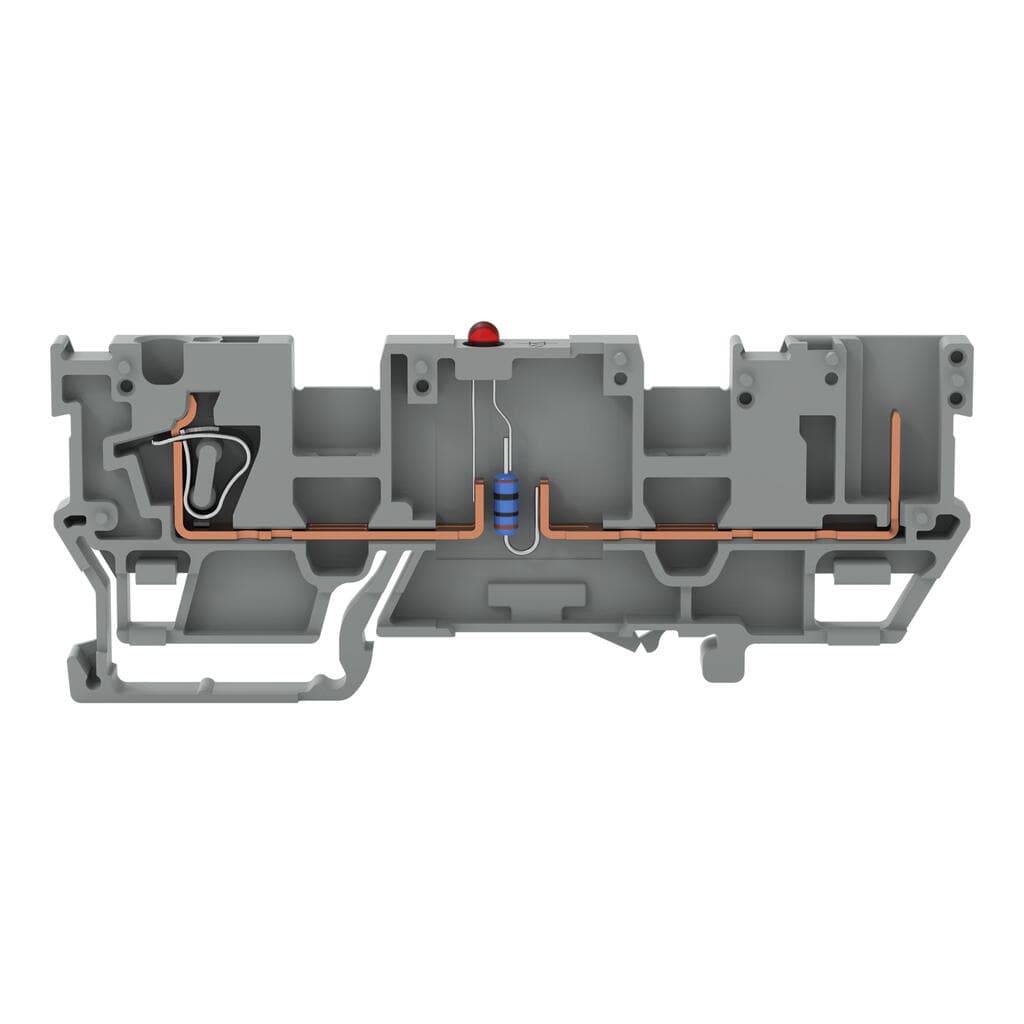

Product Model
769-219/281-413
Selling Points
- 1Efficient Connectivity Solution: Connects 1-pin/1-conductor with 2 jumper positions for versatile wiring configurations.
- 2Red LED Indicator: Includes a red LED for visual indication, enhancing monitoring and troubleshooting capabilities.
- 324 VDC Compatibility: Designed to operate at 24 VDC, suitable for a wide range of industrial and commercial applications.
- 4DIN-Rail Mounting: Mounts easily on DIN-rail 35 x 15 and 35 x 7.5, ensuring compact and organized installations.
- 5High-Quality Materials: Constructed with copper conductors and polyamide insulation, ensuring durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 1 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5?mm?/ 0.197?inches | Height | 87.5?mm?/ 3.445?inches |
Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.161MJ |
Weight | 8.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821418504 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 0.025A |
Voltage type 1 | DC | Nominal voltage | 24V |
Connection technology | CAGE CLAMP? | Total number of connection points | 1 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 1 |
Specifications may be subject to change without notice
