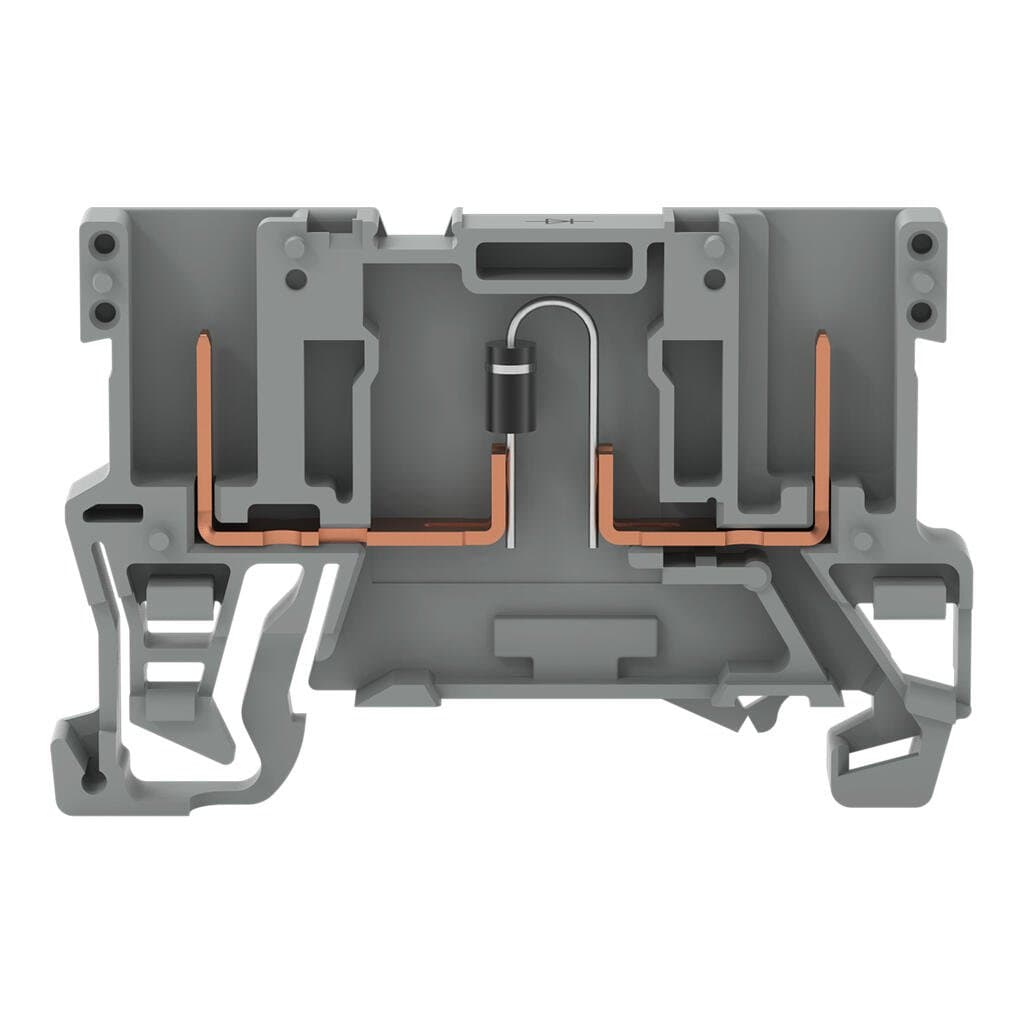

Product Model
769-228/281-410
Selling Points
- 1Integrated Diode: Equipped with a 1N4007 diode for added protection.
- 2DIN-Rail Mounting: Designed for easy installation on DIN-rail 35 x 15 and 35 x 7.5.
- 3Front-Entry Wiring: Convenient front-entry wiring for efficient connection.
- 4ROHS Compliant: Meets ROHS standards with exemption (7(a) / 7(c)-I).
- 5High Current Rating: Rated for 0.5A current, suitable for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 2-conductor female plugs cannot be used. |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5?mm?/ 0.197?inches | Height | 52.5?mm?/ 2.067?inches |
Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.112MJ |
Weight | 4.8g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454619428 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 2220823b-4765-4082-ab33-c5f0ec5ec72c | SCIP notification number (Belgium) | 644968ce-9fde-460b-bdaf-51c2b625e5b9 |
SCIP notification number (Bulgaria) | 451eb5e6-404c-4d74-9d0a-2a6225d5508c | SCIP notification number (Czech Republic) | 1853e5c7-8aed-4a1e-8022-7d63c97cdd63 |
SCIP notification number (Denmark) | f2276964-292d-40c9-836a-1dd44b6aca76 | SCIP notification number (Finland) | b33feeff-9367-40db-8262-9f60bc1b8a93 |
SCIP notification number (France) | 0890893b-55d6-4384-b527-2acabd258b6f | SCIP notification number (Germany) | fdc9a473-f823-49e1-9cf3-a8f6e8a4bdef |
SCIP notification number (Hungary) | 5a43261b-31f8-4dde-8296-f6113435fa61 | SCIP notification number (Italy) | c89b1add-2b8e-49c0-9c63-76c24001f68e |
SCIP notification number (Netherlands) | ce0288ec-116c-4409-b507-6e5b3b111387 | SCIP notification number (Poland) | 7a7bf2bc-11f7-43cd-ac60-30542d507a75 |
SCIP notification number (Romania) | ef3f894a-1c84-4ddc-8d2b-bd7d00e7d766 | SCIP notification number (Sweden) | 63880c7b-0afc-4855-b7d3-1fb446d86060 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
