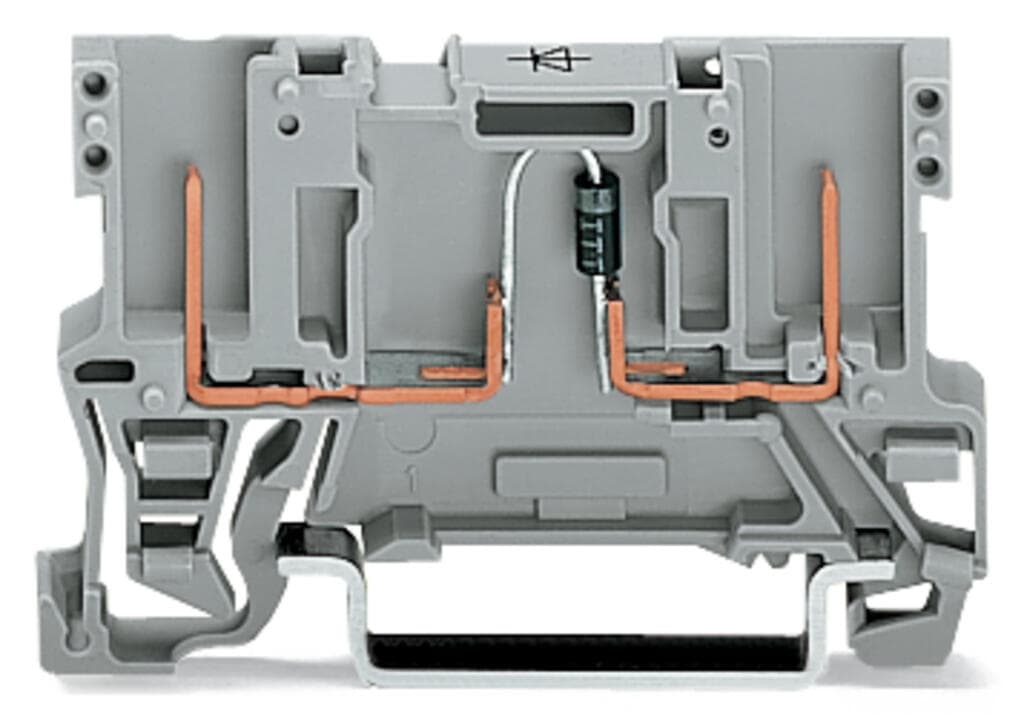

Product Model
769-228/281-411
Selling Points
- 1Designed for mounting on DIN-rails 35 x 15 and 35 x 7.5.
- 2Easy to connect with front-entry wiring direction.
- 3Rated for 0.5 A continuous operating current.
- 4Made from polyamide (PA66) for excellent insulation properties.
- 5Meets DEKRA, ABS, DNV GL, and CSA standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 2-conductor female plugs cannot be used. |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5?mm?/ 0.197?inches | Height | 52.5?mm?/ 2.067?inches |
Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.112MJ |
Weight | 4.8g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454619442 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | ccedd404-dd46-4b44-9630-d890bc25305f | SCIP notification number (Belgium) | 87a3df5c-8883-45b2-a485-dd8f0321aacb |
SCIP notification number (Bulgaria) | 3a78cd04-ed49-4234-af85-03db71d1195f | SCIP notification number (Czech Republic) | cc85411e-2db1-4f23-bd2a-d7299a7b84eb |
SCIP notification number (Denmark) | cc302b67-b452-4e1a-ad76-27be4e80276e | SCIP notification number (Finland) | 091048a2-b0d6-4dde-b46a-faa1e02deeb0 |
SCIP notification number (France) | c739bd49-8e91-4fa6-94c2-e5ca1339dc67 | SCIP notification number (Germany) | 319ca8ed-e5dc-43fe-bf07-bc727153b332 |
SCIP notification number (Hungary) | 8c52abc7-8d53-427e-a642-2b087036cee1 | SCIP notification number (Italy) | e2ebc37f-e6bc-4dfc-817a-55ffcbbf76f5 |
SCIP notification number (Netherlands) | 084c8bf5-af5f-4315-952f-0bed5ac4eb96 | SCIP notification number (Poland) | c29b2609-ffc1-4bf7-9277-5f42ef124f0a |
SCIP notification number (Romania) | 377d2324-b0f3-40be-9653-6a914fc28aa9 | SCIP notification number (Sweden) | a0e2a505-b676-4b9c-8991-869d2c0b35cf |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
