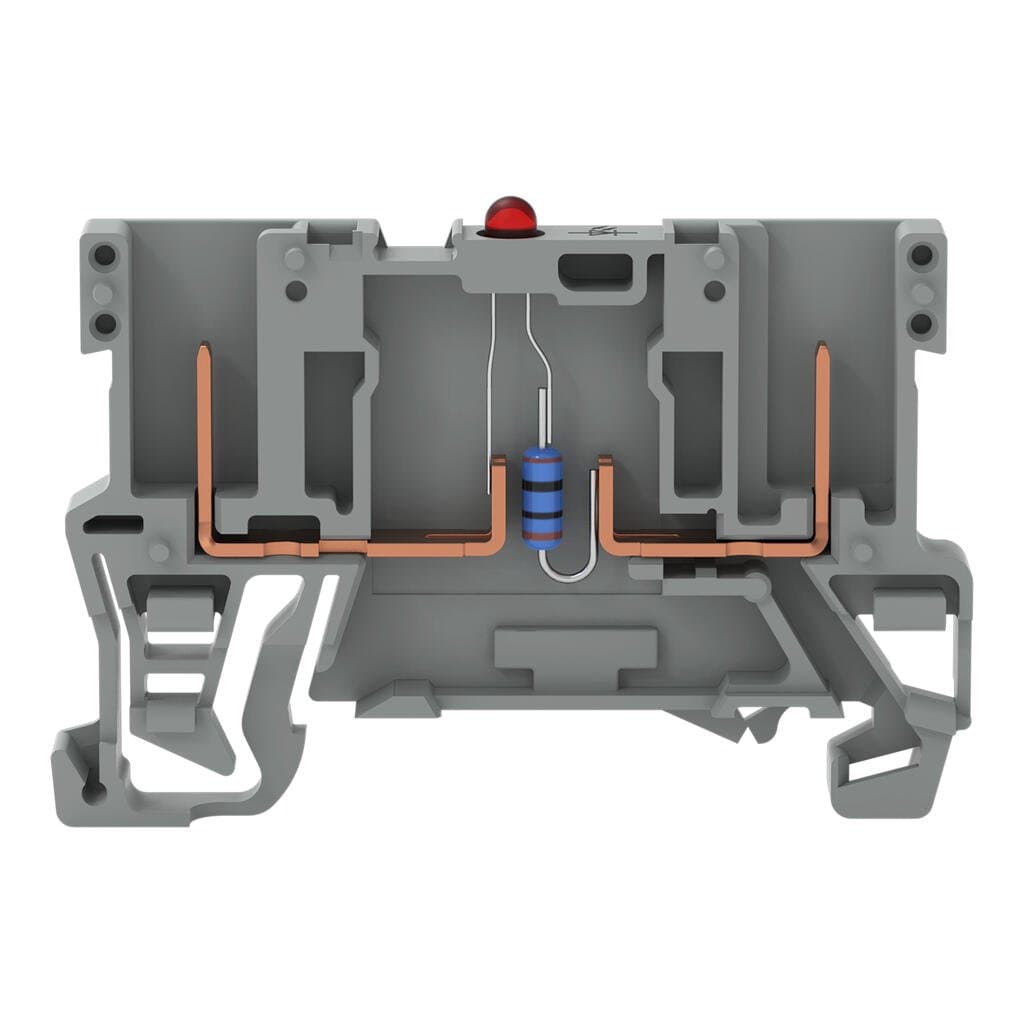

Product Model
769-229/281-434
Selling Points
- 15 mm wide, perfect for space-constrained applications.
- 2Compatible with DIN-rail 35 x 15 and 35 x 7.5.
- 3Visual confirmation of power status.
- 4Suitable for various industrial power systems.
- 5Available in a durable gray finish.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 2-conductor female plugs cannot be used. |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5?mm?/ 0.197?inches | Height | 52.5?mm?/ 2.067?inches |
Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.096MJ |
Weight | 4.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454619480 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 0.025A |
Voltage type 1 | DC | Nominal voltage | 24V |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
