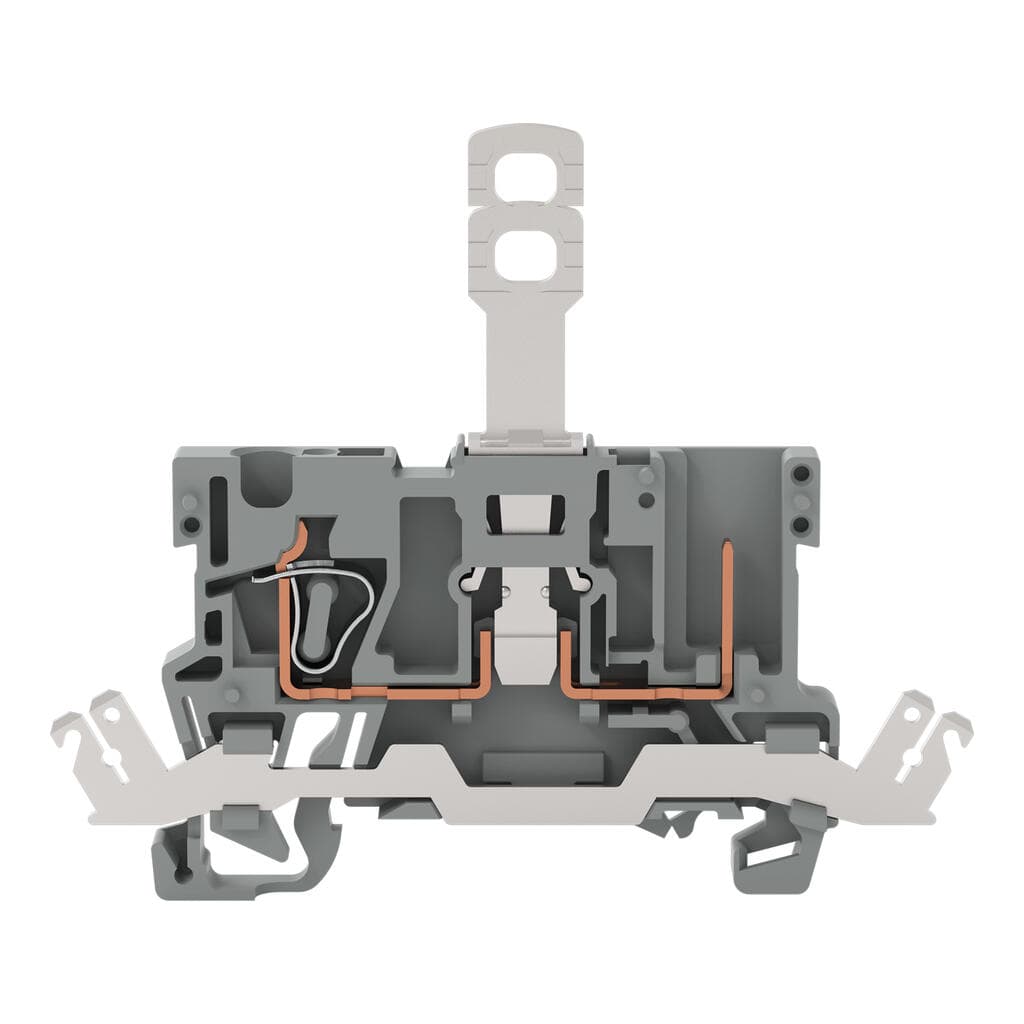

Product Model
769-233
Selling Points
- 1Features CAGE CLAMP spring connections and plug-in pin connections for secure and efficient wiring.
- 2Designed for mounting on DIN-rail 35 x 15 and 35 x 7.5, ensuring easy installation in various industrial settings.
- 3Supports a rated current of 16 A, making it suitable for applications requiring high power transmission.
- 4Constructed with polyamide (PA 66) for durability and resistance to environmental factors.
- 5Accommodates wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG), ensuring compatibility with various conductor types.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 2-conductor female plugs cannot be used. |
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 71.5?mm?/ 2.815?inches | Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.116MJ | Weight | 7.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-26 |
eCl@ss 9.0 | 27-14-11-26 | ETIM 9.0 | EC000902 |
ETIM 8.0 | EC000902 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821107422 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 0.256W | Rated current I<sub>N</sub> for specified power loss | 16A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Total number of connection points | 1 | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Number of connection points 2 | 1 |
Specifications may be subject to change without notice
