Product Model

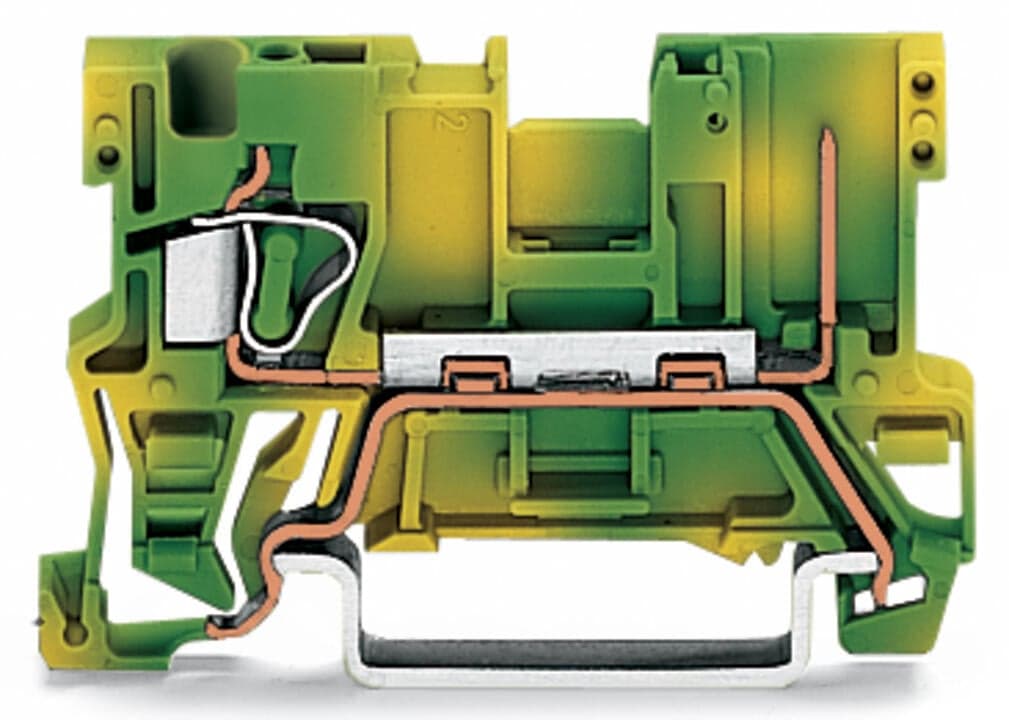

769-237
Selling Points
- 1Built with high-quality polyamide (PA66) for long-lasting performance.
- 2Front-entry wiring and screwless design facilitate quick and efficient installation.
- 3Ideal for 1 to 1 input/outputs and ground connections, ensuring seamless connectivity.
- 4Operates within -35 to 85 degrees Fahrenheit, suitable for various industrial applications.
- 5Secure connection technology for reliable conductor connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 1 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5?mm?/ 0.197?inches | Height | 52.5?mm?/ 2.067?inches |
Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.101MJ |
Weight | 6.8g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918827843 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-2 |
Connection technology | CAGE CLAMP? | Total number of connection points | 1 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 1 |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
