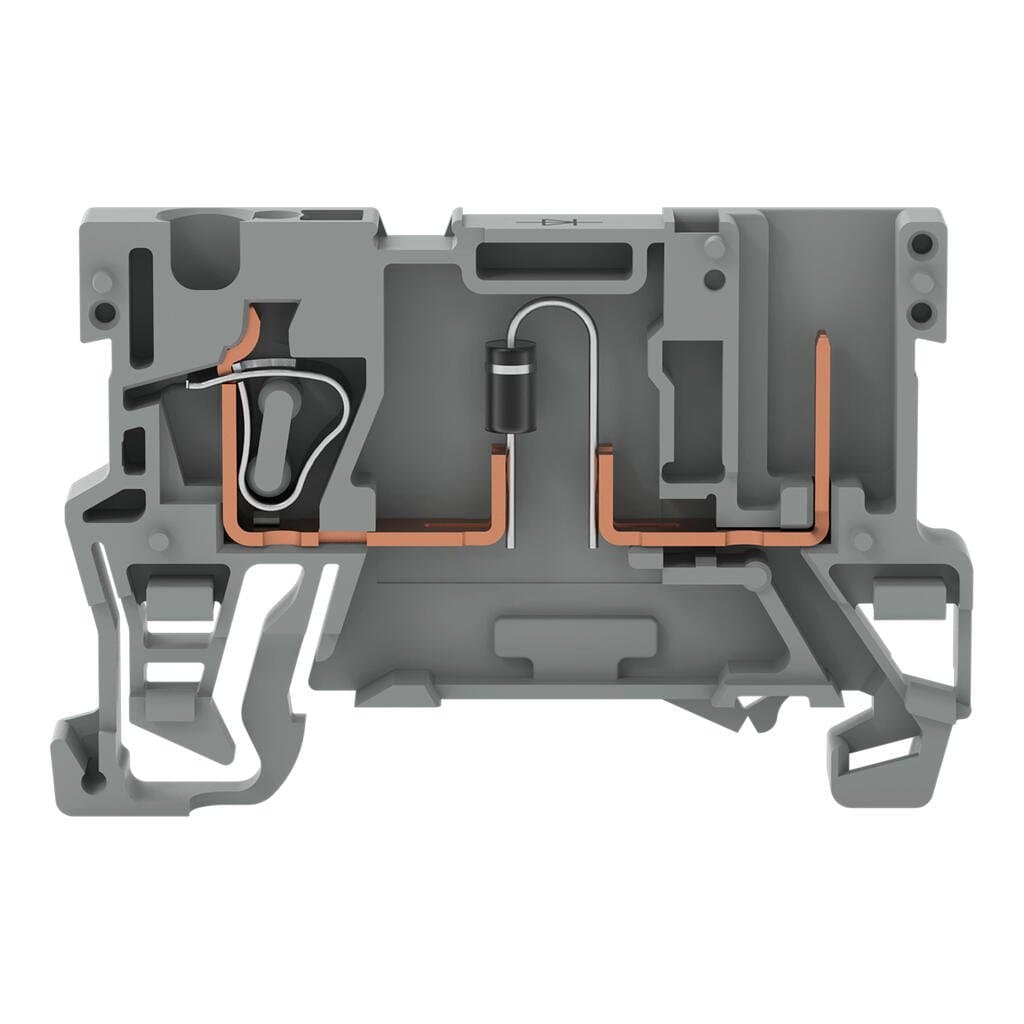

Product Model
769-238/281-410
Selling Points
- 1Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting.
- 2Secure and reliable connection with minimal risk of electrical shock.
- 3Handles up to 4mm², suitable for various industrial applications.
- 4Ensures electrical insulation and durability.
- 5Meets stringent safety standards for industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 2-conductor female plugs cannot be used. |
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 52.5?mm?/ 2.067?inches | Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.109MJ | Weight | 5.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454619510 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 5eeef95e-2c59-4ac9-a4a9-fefdac414268 |
SCIP notification number (Belgium) | ebcdc798-c6b0-40e0-9d6b-47bb5da7d8fd | SCIP notification number (Bulgaria) | 02ae744e-855a-4661-8056-f87fa4eb69cc |
SCIP notification number (Czech Republic) | 44e414cd-e678-4a51-bf2f-4071a377c969 | SCIP notification number (Denmark) | 84954bd9-f901-4245-85f7-7577d52e0531 |
SCIP notification number (Finland) | bf69a277-2238-4422-912b-68af0fa6db2a | SCIP notification number (France) | 467b416f-59b8-484a-8e53-df8303a0256c |
SCIP notification number (Germany) | c6077f93-4301-44b4-801a-01cdb6d8f4bc | SCIP notification number (Hungary) | 8c6f6891-7413-40c4-b994-1294345302b2 |
SCIP notification number (Italy) | 4c0d2a7e-1dfa-4705-a08a-b696e8a5f67e | SCIP notification number (Netherlands) | d163d7b8-ff88-44ec-b28c-9c435165cbe9 |
SCIP notification number (Poland) | 1d3758e6-53fe-4dc4-89b1-8b50d3ad8fc0 | SCIP notification number (Romania) | ad390b21-fa2c-4ea2-9463-b0bed4ae9615 |
SCIP notification number (Sweden) | ddab7472-294c-44d4-9192-133d46ed6205 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | CAGE CLAMP? | Total number of connection points | 1 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 1 |
Specifications may be subject to change without notice
