Product Model
769-238/281-411
Selling Points
- 1Ideal for DIN-rail mounting with a width of 5mm.
- 2Supports wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.

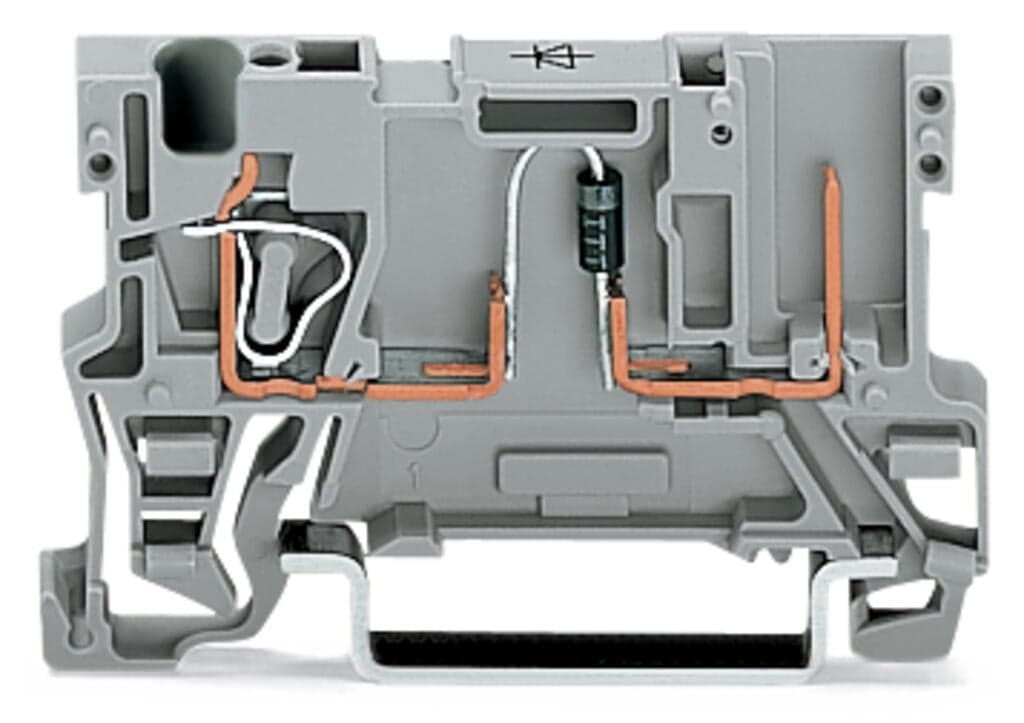

- 3Equipped with a 1N4007 diode with the anode on the right side.
- 4Utilizes CAGE CLAMP spring connections and plug-in pin connections.
- 5Meets RoHS standards with exemption (7(a) / 7(c)-I).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 2-conductor female plugs cannot be used. |
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 52.5?mm?/ 2.067?inches | Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.109MJ | Weight | 5.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454619527 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 97a6837e-a467-4dcc-81b4-ee2ec7b8fe9c |
SCIP notification number (Belgium) | ee169d46-8139-4f80-87ac-e8a13195f377 | SCIP notification number (Bulgaria) | 1cd3839d-1121-4315-8342-0f5f99fb61c7 |
SCIP notification number (Czech Republic) | b89d77f9-23b0-479d-a673-63baf74fc7f2 | SCIP notification number (Denmark) | dcdbb680-b054-493b-9525-56ff1c536692 |
SCIP notification number (Finland) | a0970ae1-d051-4f53-afa5-77357e04321a | SCIP notification number (France) | f347b9e3-7cc7-481d-82dd-4a929c921fa8 |
SCIP notification number (Germany) | df188962-7153-4f0c-8136-73c32ddbdd32 | SCIP notification number (Hungary) | 1cf9e768-44a2-4e79-add3-adcfbe71d66d |
SCIP notification number (Italy) | 49a67a75-e511-4838-a3d6-84b50172f2ac | SCIP notification number (Netherlands) | 40949828-8903-4d71-9006-327e90259cd7 |
SCIP notification number (Poland) | cc7db435-1781-4545-ac1f-7436b2373947 | SCIP notification number (Romania) | bee91c20-b557-4655-81c0-5091e24f4cfb |
SCIP notification number (Sweden) | 587c530a-18a1-4dc3-a747-860a5f51636e | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | CAGE CLAMP? | Total number of connection points | 1 |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring | Number of connection points 2 | 1 |
Specifications may be subject to change without notice
