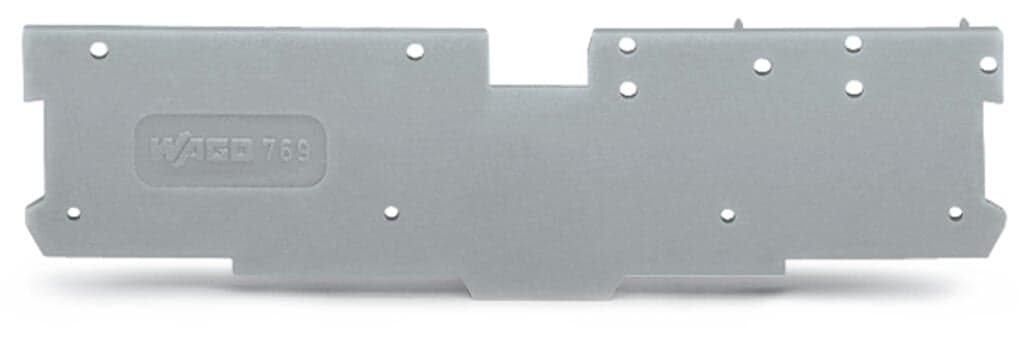

Product Model
769-303
Selling Points
- 1Durable construction with 1.1 mm thickness.
- 2Fire-resistant with a 0.067 MJ fire load.
- 3Suitable for X-COM Series Rail Mounted Terminal Blocks.
- 4Made from high-quality polyamide 6.6 material.
- 5Compact dimensions: 3.433 in H x 0.043 in W x 0.949 in D.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.1?mm?/ 0.043?inches | Height | 87.2?mm?/ 3.433?inches |
Depth | 24.1?mm?/ 0.949?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.067MJ | Weight | 2.2g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332327459 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
