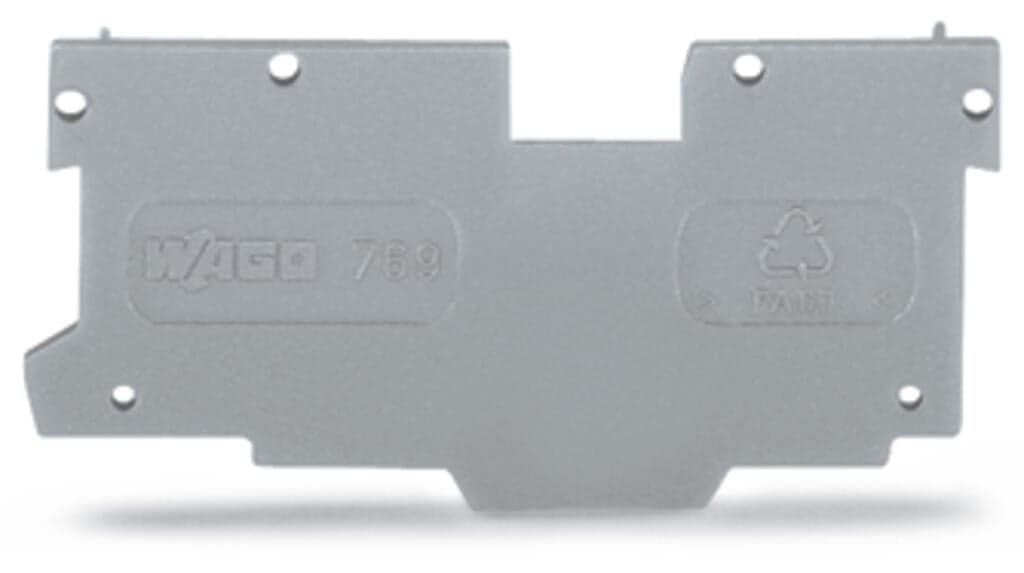

Product Model
769-305
Selling Points
- 1High-Quality Insulation: Made from polyamide (PA66) for excellent electrical insulation.
- 2Compact Design: Measures 52.5 mm in height, 24.1 mm in depth, and 1.1 mm in thickness.
- 3Fire-Resistant: Compliant with UL94 V0 flammability class, ensuring safety in high-temperature environments.
- 4Versatile Application: Suitable for use in the X-COM-System, ideal for various industrial and commercial applications.
- 5Compliant with Regulations: Meets RoHS compliance standards, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.1?mm?/ 0.043?inches | Height | 52.5?mm?/ 2.067?inches |
Depth | 24.1?mm?/ 0.949?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.036MJ | Weight | 1.2g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332373562 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
