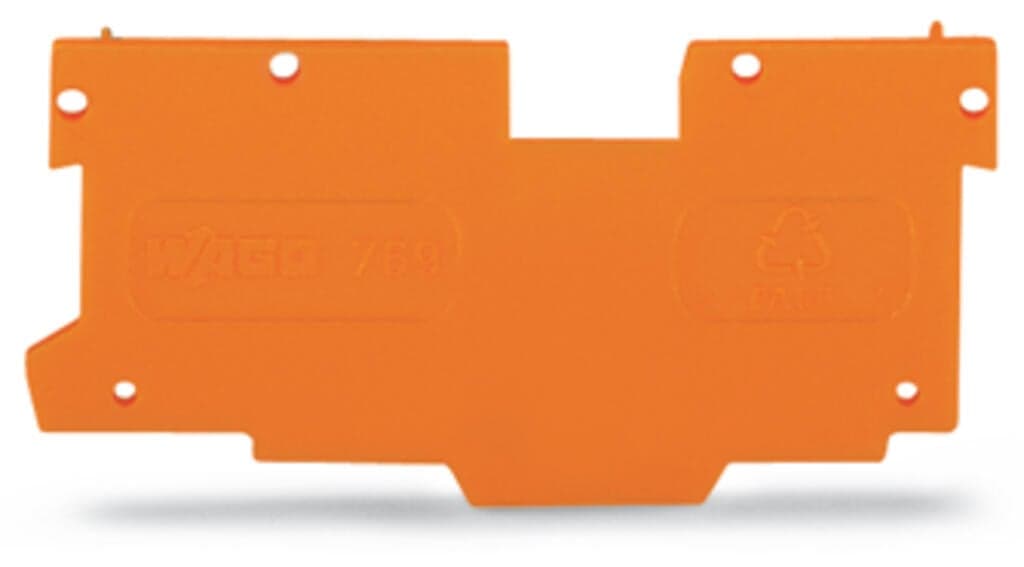

Product Model
769-306
Selling Points
- 1Made from high-quality materials with a flammability class of V0.
- 21.1 mm thick, 52.5 mm wide, and 24.1 mm deep for efficient use in tight spaces.
- 3Locking device ensures secure connection and easy handling.
- 4Visually distinct for easy identification in complex electrical setups.
- 5Available in bulk quantities at competitive prices starting at $0.72 per unit.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.1?mm?/ 0.043?inches | Height | 52.5?mm?/ 2.067?inches |
Depth | 24.1?mm?/ 0.949?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.036MJ | Weight | 1.2g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332601597 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
