Product Model
769-308
Selling Points

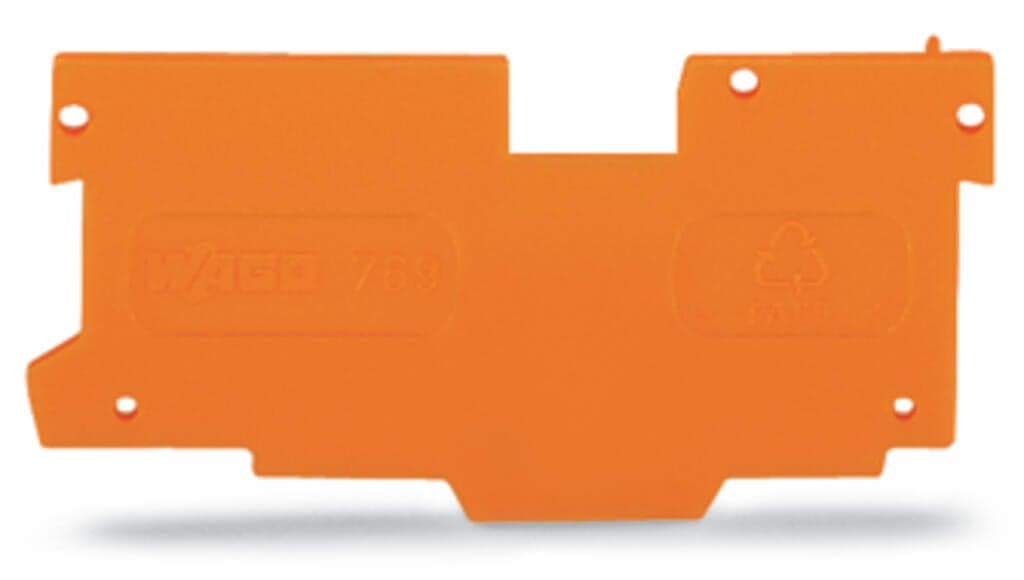

- 1The WAGO 769-308 terminal block end plate ensures reliable and secure connections with its robust design.
- 2Simple to install and use, this terminal block requires no special tools, making it accessible to all skill levels.
- 3Made from high-quality materials, this end plate is built to withstand harsh industrial environments.
- 4Compatible with various WAGO products, including the CAGE CLAMP connection system, for seamless integration.
- 5Reduces wiring time by up to 75% compared to traditional screw-type terminals, enhancing productivity in control cabinet installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.1?mm?/ 0.043?inches | Height | 52.5?mm?/ 2.067?inches |
Depth | 24.1?mm?/ 0.949?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.036MJ | Weight | 1.2g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332373623 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
