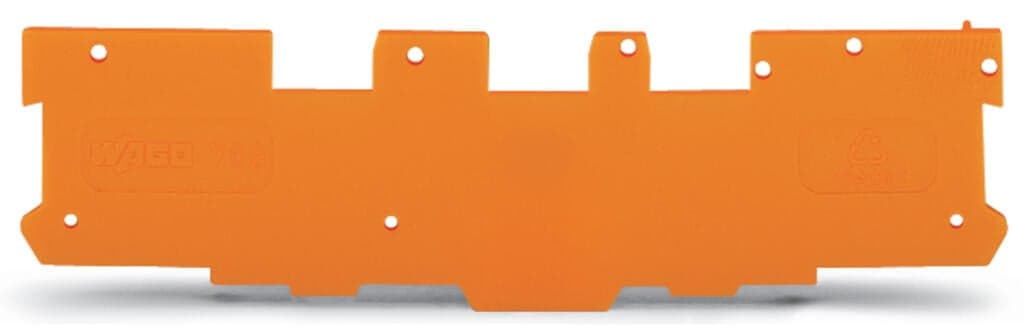

Product Model
769-316
Selling Points
- 1Durable Construction: Made from high-quality polyamide (PA66) for long-lasting performance.
- 2Vibration-Proof: Tested to withstand vibrations up to 2000Hz and accelerations up to 20g.
- 3Easy Installation: Simple push-in termination for solid and ferruled conductors.
- 4Compliant with Regulations: Meets RoHS compliance standards and adheres to safety directives like DIN VDE 0611.
- 5Versatile Usage: Suitable for various conductor sizes from 10 to 4/0 AWG (6–95mm²).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.1?mm?/ 0.043?inches | Height | 87.2?mm?/ 3.433?inches |
Depth | 24.1?mm?/ 0.949?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.062MJ | Weight | 2.1g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332602525 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
