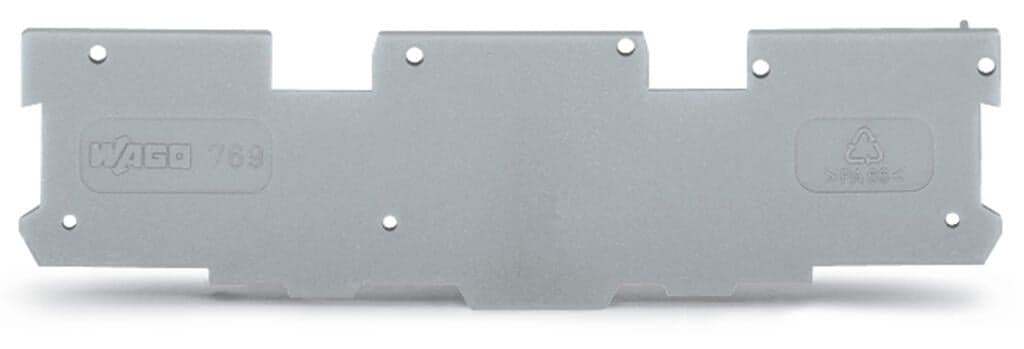

Product Model
769-317
Selling Points
- 1Compact Design: 1.1 mm thick for efficient use in tight spaces.
- 2Durable Material: Made from high-quality material with a flammability class of V0 per UL94.
- 3Versatile Application: Suitable for end and intermediate plate applications in rail and chassis mounting.
- 4Easy Installation: Designed for straightforward installation with minimal hassle.
- 5Competitive Pricing: Available at competitive prices, with options for bulk purchases.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.1?mm?/ 0.043?inches | Height | 87.2?mm?/ 3.433?inches |
Depth | 24.1?mm?/ 0.949?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.062MJ | Weight | 2.1g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332968874 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
