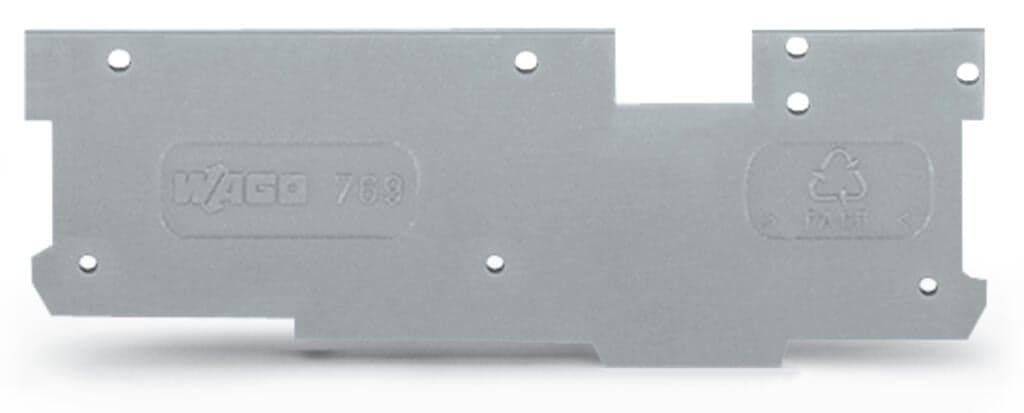

Product Model
769-320
Selling Points
- 1High Precision Conductor Termination: Terminate conductors up to 1.5 mm² (16 AWG) in a terminal block width of just 3.5 mm.
- 2Durable Construction: 1.1 mm thick, gray, and made from high-quality materials for long-lasting performance.
- 3Compact Design: Ideal for space-saving applications with a depth of 67 mm and height of 24.1 mm.
- 4Easy Installation: Simple to integrate into rail or chassis mount terminal blocks for seamless connectivity.
- 5Versatile Usage: Suitable for a variety of applications including industrial control systems and automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.1?mm?/ 0.043?inches | Height | 69?mm?/ 2.717?inches |
Depth | 24.1?mm?/ 0.949?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.049MJ | Weight | 1.6g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4044918689946 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
