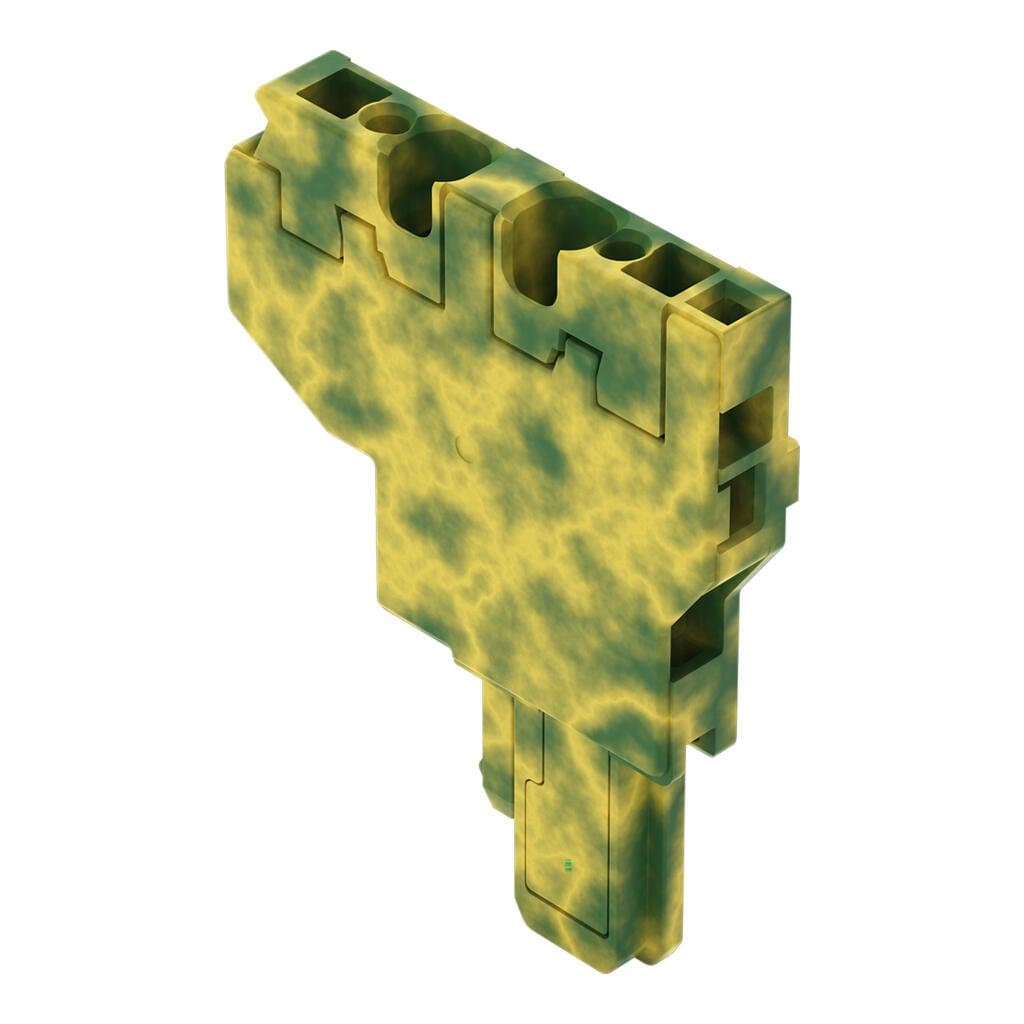

Product Model
769-503/000-016
Selling Points
- 1CAGE CLAMP Technology: Secure and reliable connection technology.
- 21-Conductor Compatibility: Designed for single-conductor applications.
- 3Green-Yellow Color: Easy identification in electrical systems.
- 4Front-Entry Wiring: Convenient and efficient wiring setup.
- 5High Reliability: Built with polyamide insulation for durability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 1 |
Total number of potentials | 1 | Width | 5?mm?/ 0.197?inches |
Height | 45.2?mm?/ 1.78?inches | Depth | 18.3?mm?/ 0.72?inches |
Module width | 5?mm?/ 0.197?inches | Variable coding | Yes |
Direct ground contact to DIN-rail/drilled hole/housing | No | Marking level | Side marking |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.049MJ |
Halogen-free | Yes | Weight | 3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 250?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4017332591430 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 61984 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 1 | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
