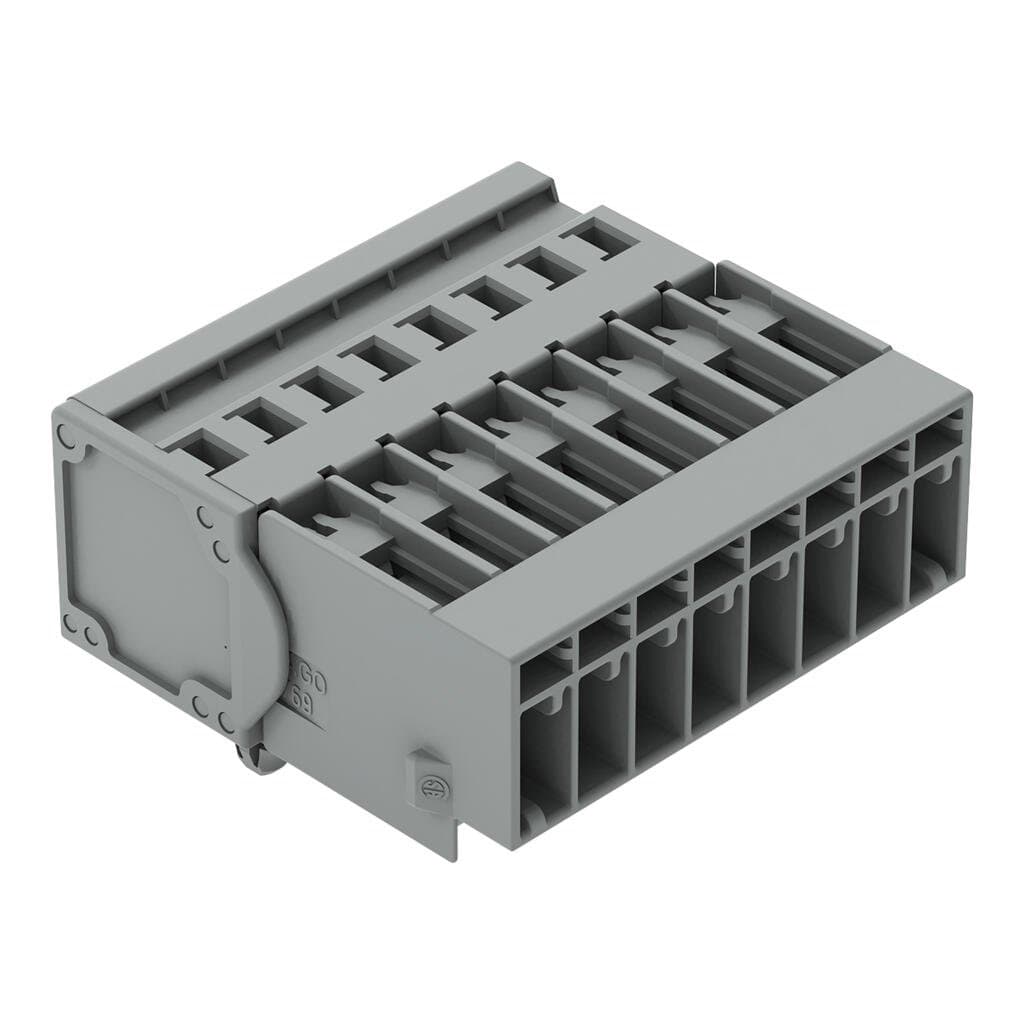

Product Model
769-608/001-000
Selling Points
- 1Easy installation on DIN rail or panel.
- 2Compact design for efficient wiring.
- 3Supports up to 8 conductors.
- 4Secure and reliable connection technology.
- 5Environmentally friendly, compliant with RoHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 8 | Total number of potentials | 8 |
Pin spacing | 5 mm / 0.197 inches | Width | 43.6 mm / 1.717 inches |
Height from the surface | 18.3 mm / 0.72 inches | Depth | 40.2 mm / 1.583 inches |
Variable coding | Yes | Housing sheet thickness | 0.6 … 1.2 mm / 0.024 … 0.047 inches |
Direct ground contact to DIN-rail/drilled hole/housing | No | Mounting type | Snap-in foot |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for conductor | Mismating protection | No |
Plugging without loss of pin spacing | No | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.533MJ | Weight | 23.6g |
Processing temperature | -35 … +85 °C | Continuous operating temperature | -60 … +105 °C |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25 pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4044918522106 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4 mm2 / 28 … 12 AWG |
Fine-stranded conductor | 0.08 … 4 mm2 / 28 … 12 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Number of poles | 8 | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
