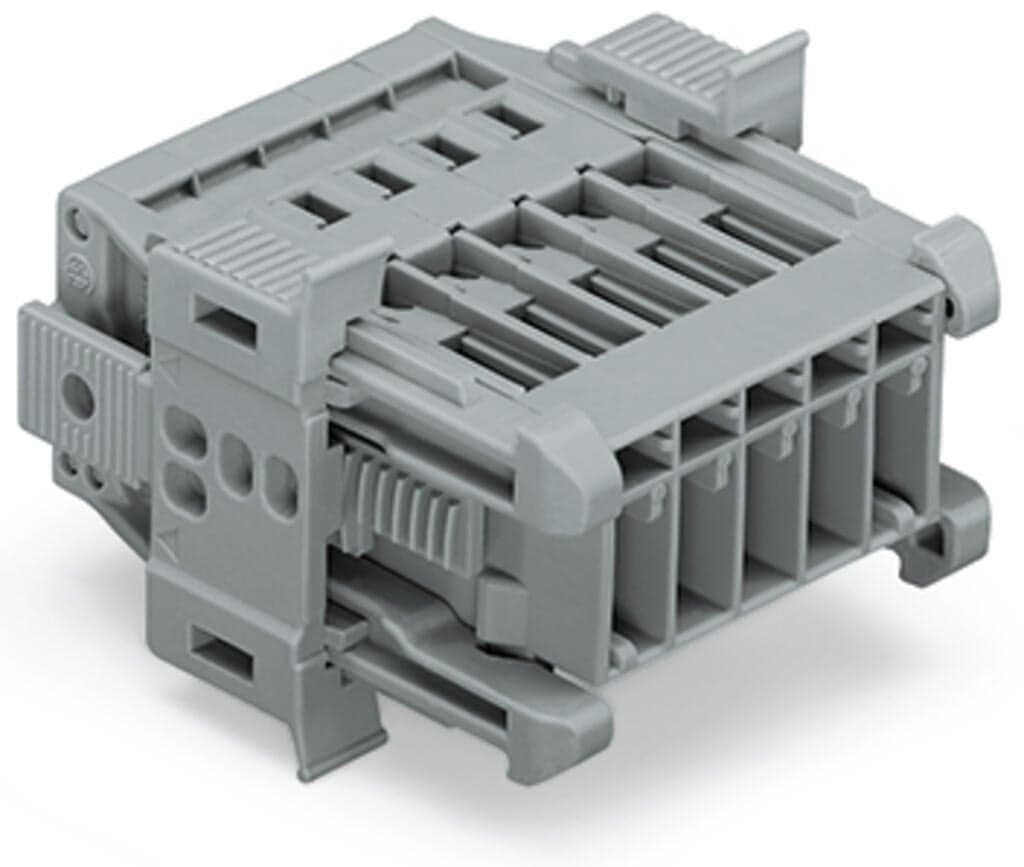

Product Model
769-610/006-000
Selling Points
- 1CAGE CLAMP Connection: Secure and reliable connection method.
- 210-Pole Configuration: Supports multiple electrical connections.
- 35 mm Pole Spacing: Compact design for efficient wiring.
- 4Adjustable Snap-In Flanges: Easy installation and adjustment.
- 5Durable Polyamide Housing: Insulated for safety and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 10 | Total number of potentials | 10 |
Pin spacing | 5?mm?/ 0.197?inches | Width | 64.3?mm?/ 2.531?inches |
Height | 30?mm?/ 1.181?inches | Depth | 41.7?mm?/ 1.642?inches |
Variable coding | Yes | Direct ground contact to DIN-rail/drilled hole/housing | No |
Mounting type | Snap-in flange variant | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | No | Plugging without loss of pin spacing | No |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.798MJ |
Weight | 33.7g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4045454917074 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 10 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
