Product Model

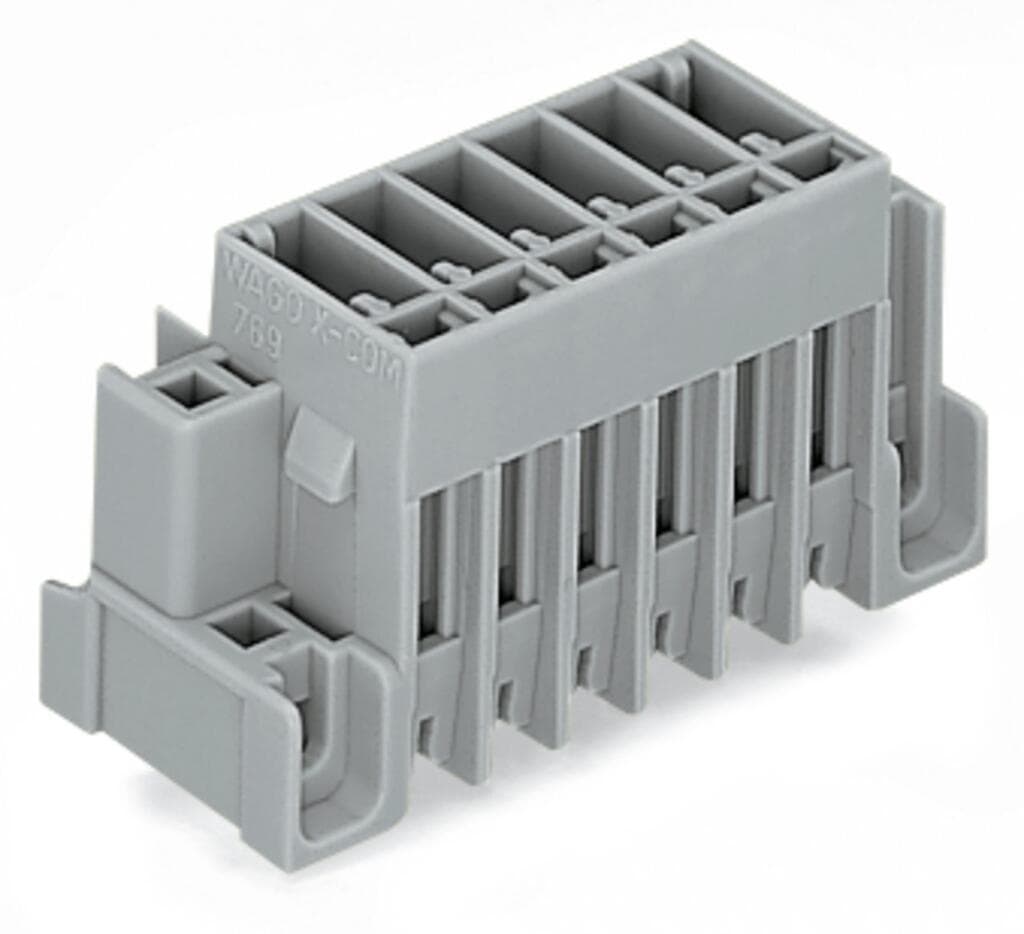

769-637/004-000
Selling Points
- 1High current rating of 32A.
- 27-pole design with 5mm pin spacing.
- 3Straight solder pins for reliable connections.
- 4Vertical mounting with fixing flanges.
- 5ROHS compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 7 | Number of levels | 1 |
Preceding contacts | No | Pin spacing | 5?mm?/ 0.197?inches |
Width | 49.7?mm?/ 1.957?inches | Height from the surface | 22.2?mm?/ 0.874?inches |
Depth | 18.3?mm?/ 0.72?inches | Variable coding | Yes |
Mounting type | Feedthrough flange | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male header | Connector (connection type) | for PCB |
Mismating protection | No | Plugging without loss of pin spacing | No |
Mating direction to the PCB | 90° | PCB contact | THT |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.29MJ |
Weight | 8.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4044918533102 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 500V |
Rated surge voltage (III/2) | 4kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Number of poles | 7 |
Specifications may be subject to change without notice
