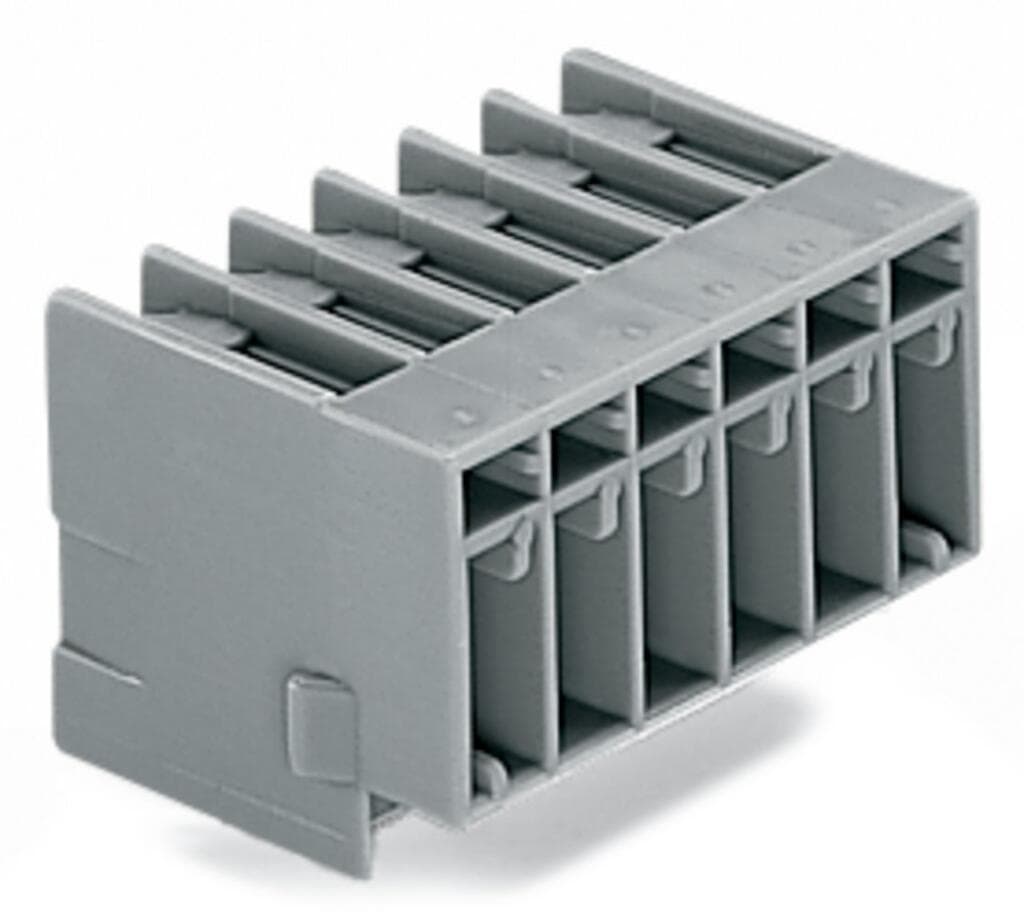

wago 769-664

Selling Points

  • 1Angled Solder Pins for Easy PCB Mounting
  • 24-Pole Configuration for Multi-Point Connections
  • 35mm Pin Spacing for Precise Component Placement
  • 4Gray Color for Enhanced Visibility in PCB Designs
  • 5Rated Current of 32A for High-Performance Applications
Product Details
769-664
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Total number of potentials
4
Number of levels
1
Preceding contacts
No
Pin spacing
5?mm?/ 0.197?inches
Width
23.6?mm?/ 0.929?inches
Height from the surface
18.3?mm?/ 0.72?inches
Depth
22.2?mm?/ 0.874?inches
Variable coding
Yes
Mounting type
PCB
Anti-rotation protection
Yes
Contact type (pluggable connector)
Male header
Connector (connection type)
for PCB
Mismating protection
No
Plugging without loss of pin spacing
No
Mating direction to the PCB
0°
PCB contact
THT
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.127MJ
Weight
4.6g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
Product Group
18 (X-COM-System)
eCl@ss 10.0
27-44-04-02
eCl@ss 9.0
27-44-04-02
ETIM 9.0
EC002637
ETIM 8.0
EC002637
ECCN
NO US CLASSIFICATION
PU (SPU)
50?pcs
Packaging type
box
Country of origin
DE
GTIN
4044918396639
Customs tariff number
8536694040
RoHS Compliance Status
Compliant,No Exemption
Rated voltage (III / 3)
250V
Rated impulse voltage (III / 3)
4kV
Rated voltage (III/2)
500V
Rated surge voltage (III/2)
4kV
Rated current
32A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Number of poles
4
