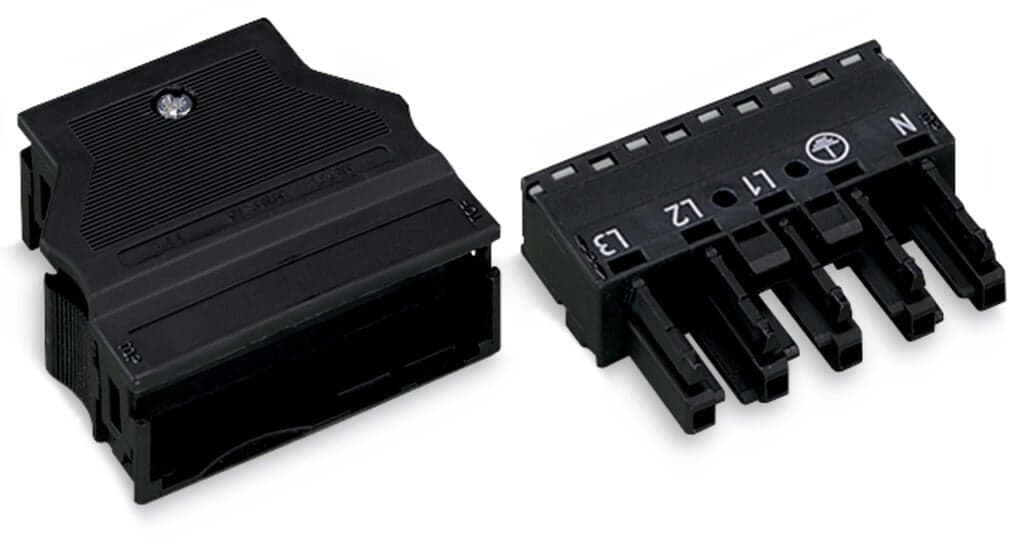

wago 770-105

Selling Points

  • 1Durable black finish for long-lasting performance.
  • 25-pole design for versatile electrical connections.
  • 3Strain relief housing for added protection against wear and tear.
  • 4Easy installation with spring pressure connection technology.
  • 5Compatible with a wide range of wiring systems for seamless integration.
Product Details
770-105
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
10
Total number of potentials
5
Pin spacing
10?mm?/ 0.394?inches
Width
54.6?mm?/ 2.15?inches
Height
17?mm?/ 0.669?inches
Depth
76?mm?/ 2.992?inches
Use
General mains applications
Coding
A
Variable coding
Yes
Marking
N ? L1 L2 L3
Potential Marking
N ? L1 L2 L3
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Retention force of a plug-in connection
Locked: > 80 N
Unmating force of a plug-in connection
Unlocked: approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Protection type
IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Contact type (pluggable connector)
Female connector/socket
Connector (connection type)
for conductor
Mismating protection
Yes
Note on mismating protection
AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole
Locking lever
Can be retrofitted
Locking of plug-in connection
locking lever
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
Strain relief
strain relief housing
Note (material data)
Information on material specifications can be found here
Color
black
Cover color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Fire load
0.648MJ
Connector color
black
Strain relief color
black
Weight
29g
Processing temperature
-5 … +40?°C
Continuous operating temperature
-35 … +85?°C
Note on continuous operating temperature
Insulating parts for temperatures ≤ 105 °C
Product Group
20 (Winsta)
eCl@ss 10.0
27-44-06-05
eCl@ss 9.0
27-44-06-05
ETIM 9.0
EC002560
ETIM 8.0
EC002560
ECCN
NO US CLASSIFICATION
PU (SPU)
25?pcs
Packaging type
box
Country of origin
DE
GTIN
4044918252157
Customs tariff number
8536694040
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III / 3)
400V
Rated impulse voltage (III / 3)
6kV
Rated current
25A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Note for the US market
Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.
Rated voltage (UL 1977)
600V
Rated current UL 1977
23A
Note on contact resistance
approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket
Connection technology
Push-in CAGE CLAMP?
Actuation type
Operating tool
Nominal cross-section
4 mm2 / 12 AWG
Solid conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Solid conductor; push-in termination
1.5 … 4?mm2?/ 16 … 12?AWG
Stranded conductor
0.5 … 2.5?mm2?/ 20 … 14?AWG
Fine-stranded conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5?mm2?/ 20 … 16?AWG
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5?mm2?/ 20 … 14?AWG
Fine-stranded conductor; with ferrule; push-in termination
1.5?mm2?/ 16?AWG
Strip length
9?mm?/ 0.35?inches
Number of poles
5
Conductor entry direction to mating direction
Strip length (outer insulation)
55mm

Specifications may be subject to change without notice
