Product Model

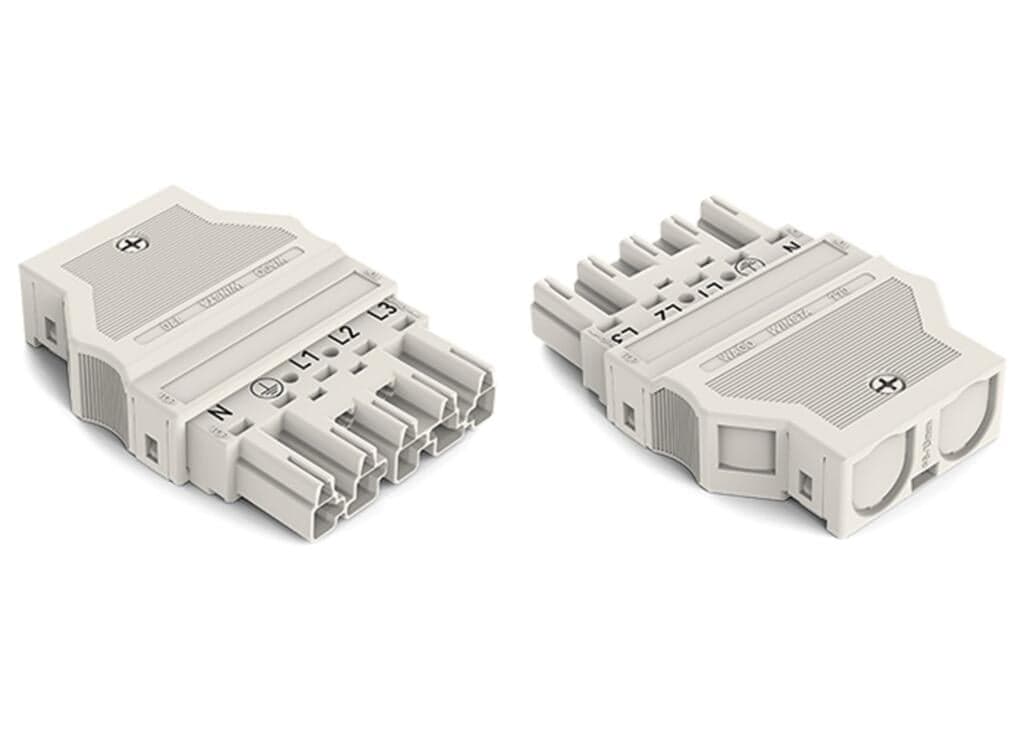

770-135
Selling Points
- 1Efficient Electrical Connections: The WAGO 770-135 plug ensures secure and maintenance-free connections in various applications.
- 2Durable Design: Constructed with durable copper alloy contacts for long-lasting performance.
- 3Strain Relief Housing: Protects against mismating and provides a secure fit for cables.
- 4Versatile Compatibility: Compatible with a wide range of wiring configurations, ideal for both industrial and commercial use.
- 5Easy Installation: Designed for ease of installation, reducing setup time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 10 | Total number of potentials | 5 |
PE function | Preceding PE contact | Pin spacing | 10?mm?/ 0.394?inches |
Width | 54.6?mm?/ 2.15?inches | Height | 17?mm?/ 0.669?inches |
Depth | 76?mm?/ 2.992?inches | Use | General mains applications |
Coding | A | Variable coding | Yes |
Marking | L3 L2 L1 ? N | Potential Marking | L3 L2 L1 ? N |
Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | Locked: > 80 N |
Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
Protection type | IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for conductor | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Strain relief | strain relief housing | Note (material data) | Information on material specifications can be found here |
Color | white | Cover color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.745MJ | Connector color | white |
Strain relief color | white | Weight | 29.5g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-05 | eCl@ss 9.0 | 27-44-06-05 |
ETIM 9.0 | EC002560 | ETIM 8.0 | EC002560 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918254502 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 23A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Solid conductor; push-in termination | 1.5 … 4?mm2?/ 16 … 12?AWG | Stranded conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG |
Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2?/ 20 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1.5?mm2?/ 16?AWG |
Strip length | 9?mm?/ 0.35?inches | Number of poles | 5 |
Conductor entry direction to mating direction | 0° | Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
