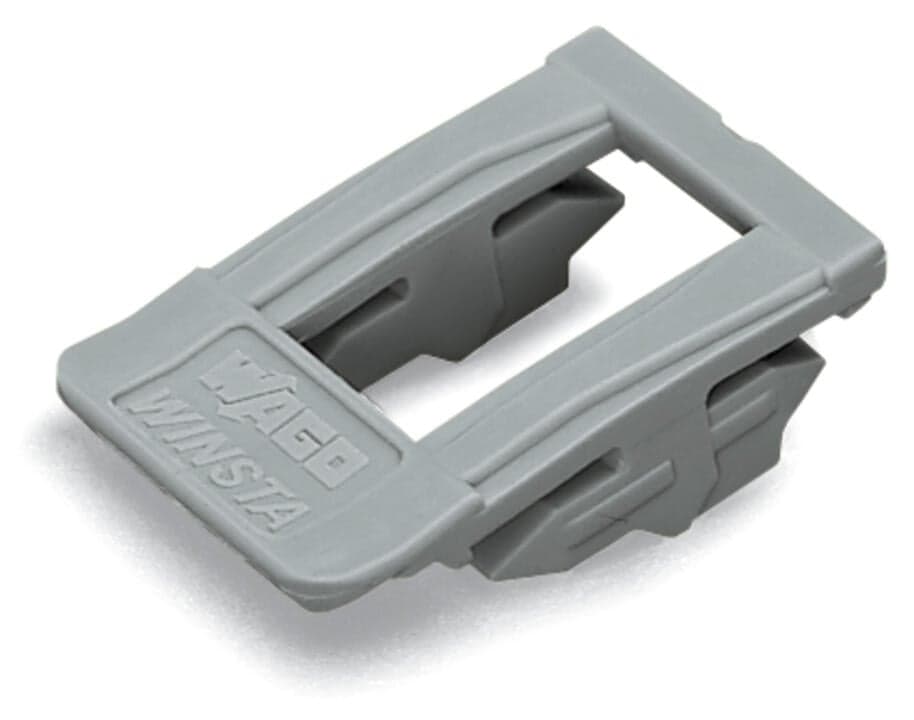

Product Model
770-140
Selling Points
- 1Secure and Reliable Connections: Ensures efficient conductivity and safety in electrical installations.
- 2Tool Operation Compatible: Designed for sockets and plugs, perfect for tool-operated applications.
- 3Gray Color Option: Available in a durable gray finish for easy identification.
- 4Wide Operating Temperature Range: Operates between -35°C to +85°C, suitable for various environments.
- 5Compliant with Industry Standards: Meets UL94 V0 flammability class and ROHS compliance for safety and sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variable coding | No | Suitable | for flying leads; tool operated |
Mismating protection | No | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.015MJ |
Weight | 0.5g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821601364 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Actuation type | Operating tool |
Specifications may be subject to change without notice
