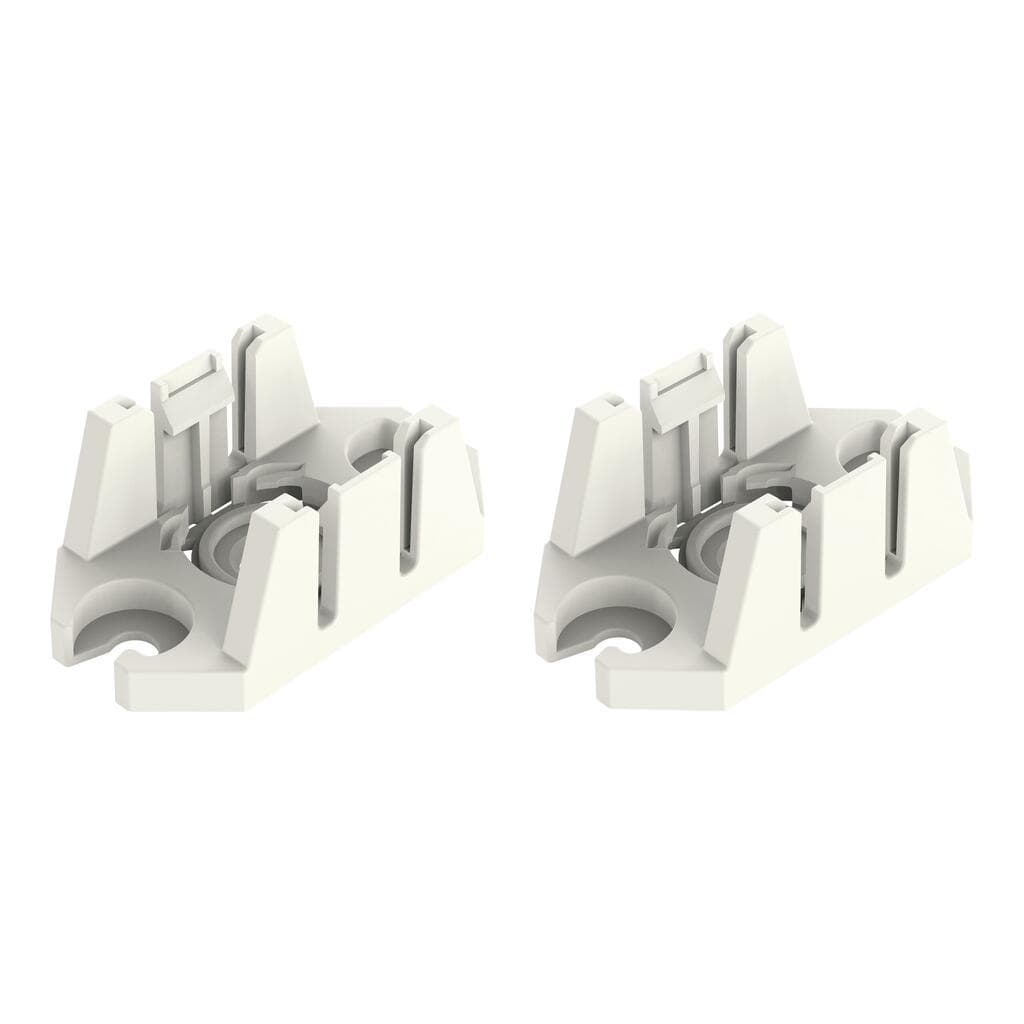

Product Model
770-1627
Selling Points
- 1High-Voltage Capability: Rated for 500V/6kV surge voltage, ensuring reliable operation in demanding electrical environments.
- 2Durable Construction: Built with 0.7mm thick end and intermediate plates for long-lasting performance.
- 3Versatile Conductor Sizes: Supports conductor sizes from 0.14mm² to 1.5mm², accommodating various electrical needs.
- 4Easy Installation: Push-in type jumper bars with insulated ferrules simplify the installation process.
- 5Enhanced Safety Features: Includes protective warning markers with high-voltage symbols for added safety precautions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | Screw mounting | Suitable | for distribution connectors (except T-distribution connectors); 2-pole |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.12MJ | Weight | 4g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821854531 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 2 |
Specifications may be subject to change without notice
