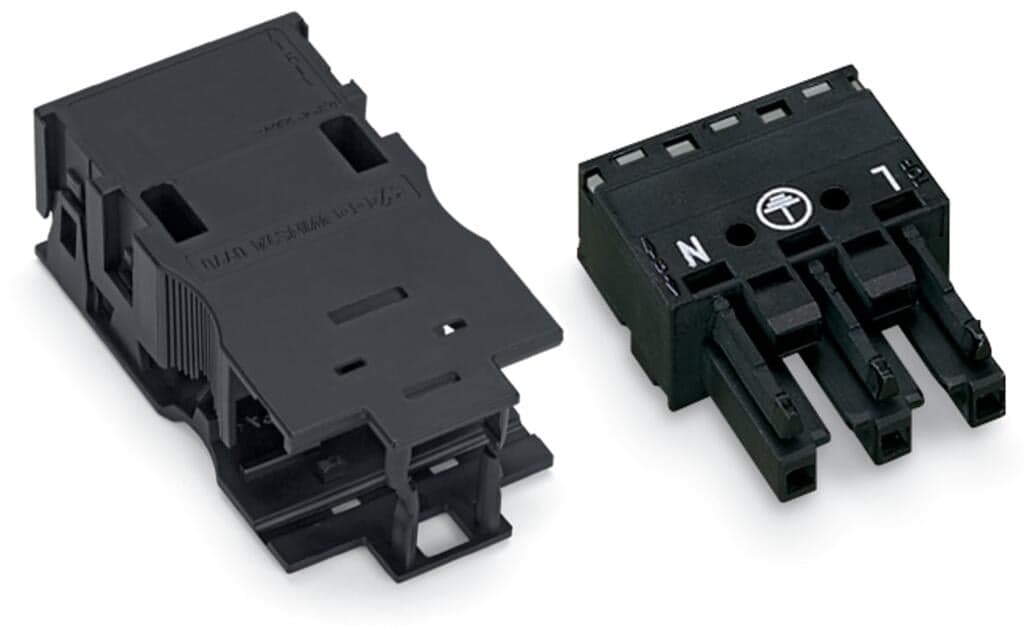

Product Model
770-203/035-000
Selling Points
- 1Supports up to 25A rated current.
- 2Compatible with solid, stranded, and fine-stranded conductors.
- 3Ensures secure mating with a mating force of approximately 20...70N.
- 4Offers IP2XD protection when mated and secured.
- 5Meets RoHS compliance standards without exemptions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 3 |
Pin spacing | 10?mm?/ 0.394?inches | Width | 30?mm?/ 1.181?inches |
Height | 15.6?mm?/ 0.614?inches | Depth | 77?mm?/ 3.031?inches |
Use | General mains applications | Coding | A |
Variable coding | Yes | Marking | L ? N |
Potential Marking | L ? N | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Protection type | IP2XD; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Suitable | for quick assembly | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Strain relief | Strain relief house, for quick assembly | Note (material data) | Information on material specifications can be found here |
Color | black | Cover color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
Fire load | 0.411MJ | Connector color | black |
Strain relief color | black | Weight | 17.6g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-05 |
eCl@ss 9.0 | 27-44-06-05 | ETIM 9.0 | EC002560 |
ETIM 8.0 | EC002560 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143209168 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 25A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Nominal cross-section | 4 mm2 / 12 AWG |
Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Solid conductor; push-in termination | 1.5 … 4?mm2?/ 16 … 12?AWG |
Stranded conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG | Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2?/ 20 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1.5?mm2?/ 16?AWG | Strip length | 9?mm?/ 0.35?inches |
Number of poles | 3 | Conductor entry direction to mating direction | 0° |
Strip length (outer insulation) | 48mm |
Specifications may be subject to change without notice
