Product Model
770-221
Selling Points

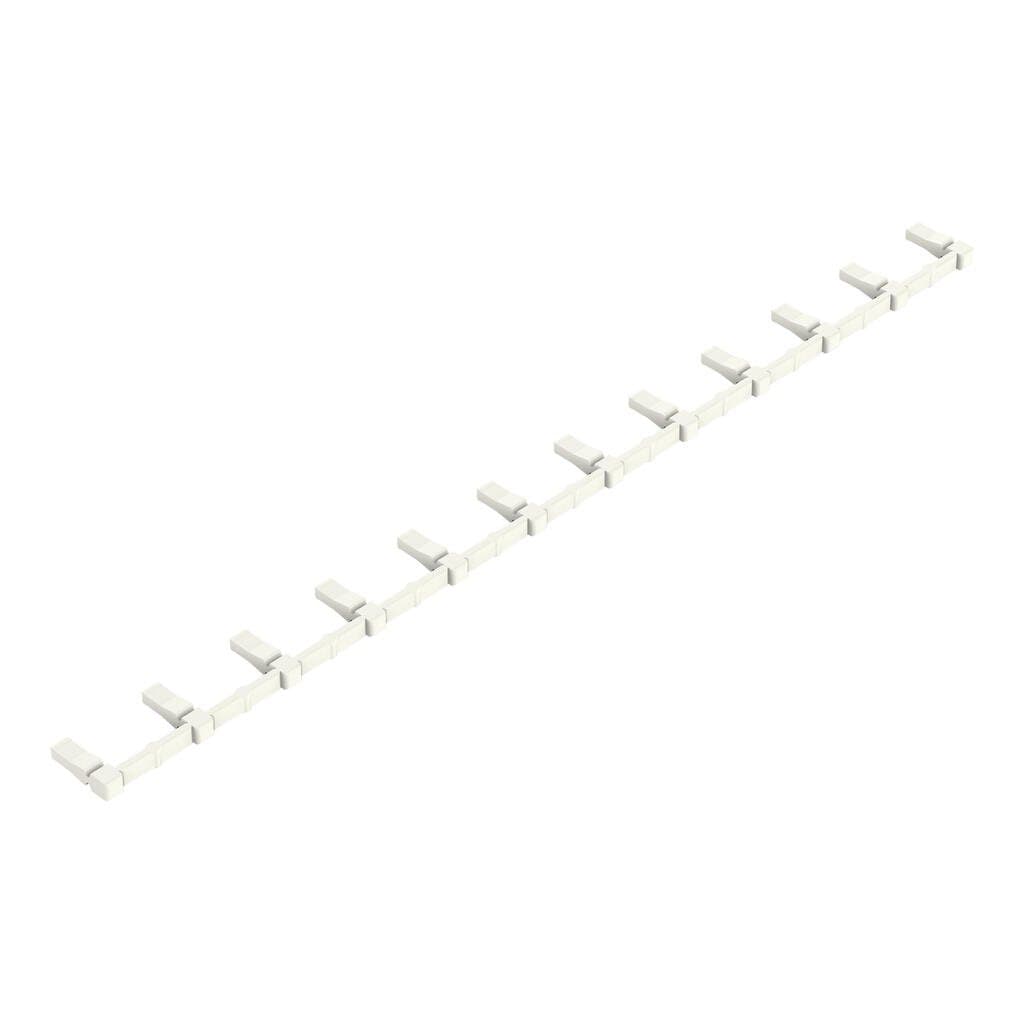

- 1Fast and Easy Installation: The WAGO 770-221 lockout cap features a push-in termination for quick and easy connections.
- 2High Reliability: Made from Polyamide (PA66) insulation material, it ensures reliable performance in a wide temperature range.
- 3Versatile Application: Suitable for various socket applications, including intercom systems, electrical ovens, and hazardous locations.
- 4Compliance and Safety: Approved as independent equipment per EN 60998, ensuring compliance in household and building installations.
- 5Compact Design: Weighing only 0.4g, it is compact and lightweight for easy handling and storage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | for socket;? separable | Note (material data) | Information on material specifications can be found here |
Color | white | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.013MJ |
Weight | 0.4g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4017332755283 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 12 |
Specifications may be subject to change without notice
