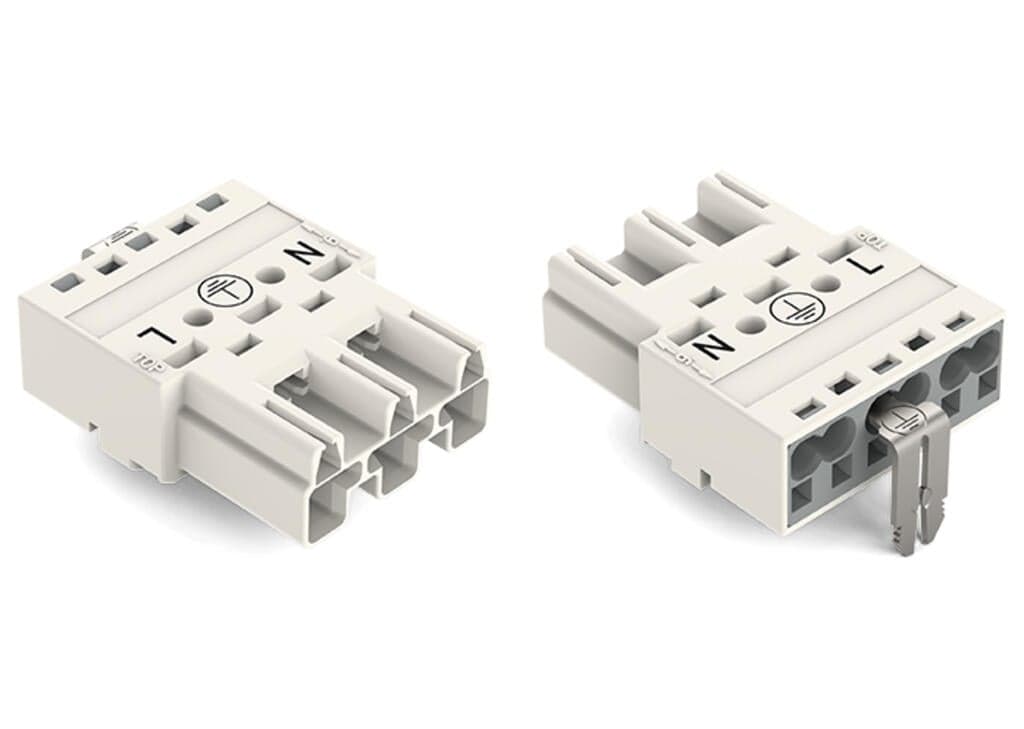

Product Model
770-233/002-000
Selling Points
- 1Designed to withstand 250 V/4 kV/3 16 A.
- 2Suitable for AWG 22 - 16 conductors.
- 3Features CAGE CLAMP®S connection for quick setup.
- 4Built with strain relief housing for long-lasting performance.
- 5Available in black, white, gray, and blue color options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Application note for the U.S. market (USR): Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. | Note | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Clamping units | 6 | Total number of potentials | 3 |
PE function | Preceding PE contact | Pin spacing | 10?mm?/ 0.394?inches |
Width | 30?mm?/ 1.181?inches | Height | 12.9?mm?/ 0.508?inches |
Depth | 37.5?mm?/ 1.476?inches | Drilled hole diameter with tolerance | 5(-0.05 … +0.05)mm |
Use | General mains applications | Coding | A |
Variable coding | Yes | Marking | N ? L |
Potential Marking | N ? L | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Design | With direct ground contact |
Protection type | IP20 | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for conductor | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | yes |
Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
Note (material data) | Information on material specifications can be found here | Color | white |
Cover color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 0.213MJ |
Weight | 11.4g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
eCl@ss 10.0 | 27-44-06-05 | eCl@ss 9.0 | 27-44-06-05 |
ETIM 9.0 | EC002560 | ETIM 8.0 | EC002560 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454829551 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. | Rated voltage (UL 1977) | 600V |
Rated current UL 1977 | 23A | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Solid conductor; push-in termination | 1.5 … 4?mm2?/ 16 … 12?AWG | Stranded conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG |
Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2?/ 20 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1.5?mm2?/ 16?AWG |
Strip length | 9?mm?/ 0.35?inches | Number of poles | 3 |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
