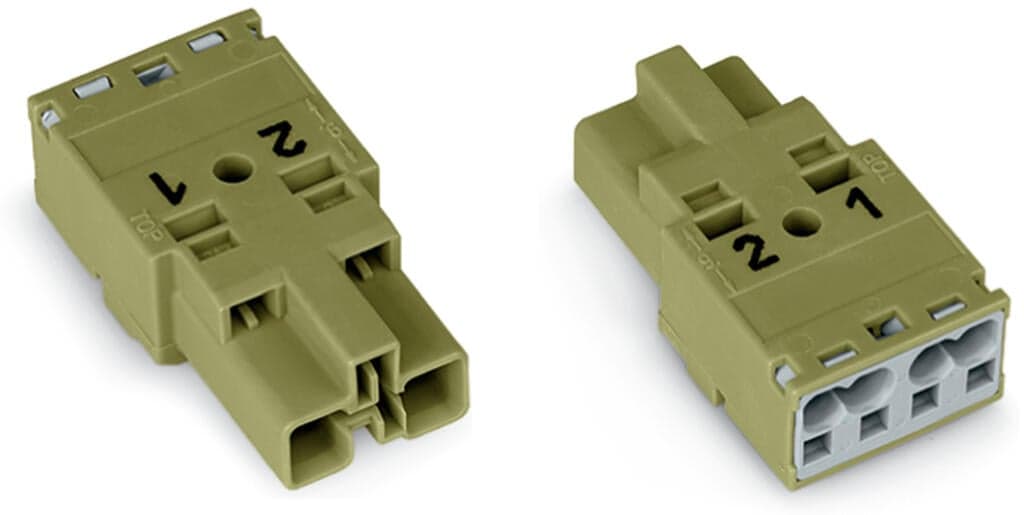

wago 770-272

Selling Points

  • 1Error-Free Installation: Ensures secure connections without screw connections, ideal for control cabinets, PCBs, and lighting connections.
  • 2Mismating Protection: 100% protected against mismating in various orientations (different poles, rotated, laterally staggered).
  • 3Compact Design: Suitable for tight spaces with a compact design that fits well in industrial, commercial, and residential applications.
  • 4High Safety Standards: Meets IP20 protection type and can be upgraded to IP2xC with a strain relief housing for enhanced safety.
  • 5Versatile Use: Used in various applications including industrial, commercial, and residential electrical installations with a continuous service temperature range of -35°C to +85°C.
Product Details
770-272
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Variants:
Other pole markings
Clamping units
4
Total number of potentials
2
Pin spacing
10?mm?/ 0.394?inches
Width
20?mm?/ 0.787?inches
Height
12.9?mm?/ 0.508?inches
Depth
37.5?mm?/ 1.476?inches
Use
Control technology
Coding
B
Variable coding
No
Marking
2 1
Potential Marking
2 1
Mating force of a plug-in connection
approx. 20 … 70 N (depending on pole number)
Retention force of a plug-in connection
Locked: > 80 N
Unmating force of a plug-in connection
Unlocked: approx. 20 … 70 N (depending on pole number)
Number of mating cycles
200, without resistive load
Protection type
IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
Contact type (pluggable connector)
Male connector/plug
Connector (connection type)
for conductor
Mismating protection
Yes
Note on mismating protection
AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole
Locking lever
Can be retrofitted
Locking of plug-in connection
locking lever
Note on locking system
All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
Note (material data)
Information on material specifications can be found here
Color
light green
Cover color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Contact material
Copper or copper alloy; surface-treated
Contact plating
Tin
Fire load
0.126MJ
Weight
6.1g
Processing temperature
-5 … +40?°C
Continuous operating temperature
-35 … +85?°C
Note on continuous operating temperature
Insulating parts for temperatures ≤ 105 °C
Product Group
20 (Winsta)
eCl@ss 10.0
27-44-06-05
eCl@ss 9.0
27-44-06-05
ETIM 9.0
EC002560
ETIM 8.0
EC002560
ECCN
NO US CLASSIFICATION
PU (SPU)
100?pcs
Packaging type
box
Country of origin
DE
GTIN
4050821541899
Customs tariff number
8536694040
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III / 3)
250V
Rated impulse voltage (III / 3)
4kV
Rated current
25A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Note for the US market
Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.
Rated voltage (UL 1977)
600V
Rated current UL 1977
23A
Note on contact resistance
approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket
Connection technology
Push-in CAGE CLAMP?
Actuation type
Operating tool
Nominal cross-section
4 mm2 / 12 AWG
Solid conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Solid conductor; push-in termination
1.5 … 4?mm2?/ 16 … 12?AWG
Stranded conductor
0.5 … 2.5?mm2?/ 20 … 14?AWG
Fine-stranded conductor
0.5 … 4?mm2?/ 20 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5?mm2?/ 20 … 16?AWG
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5?mm2?/ 20 … 14?AWG
Fine-stranded conductor; with ferrule; push-in termination
1.5?mm2?/ 16?AWG
Strip length
9?mm?/ 0.35?inches
Number of poles
2
Conductor entry direction to mating direction

Specifications may be subject to change without notice
