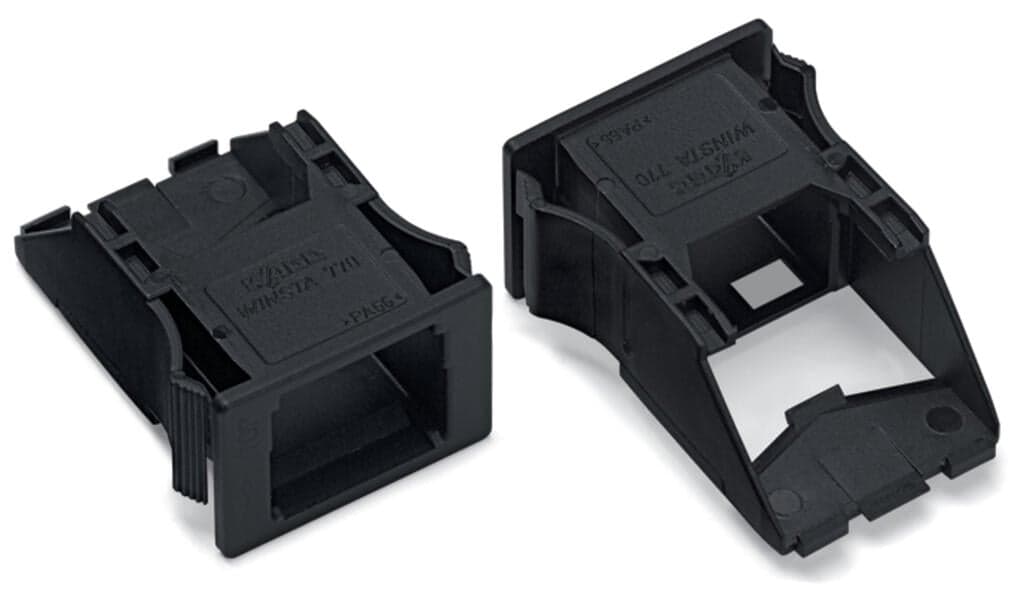

Product Model
770-317
Selling Points
- 1Easy installation with snap-in design.
- 2Durable polyamide (PA66) insulation for reliable performance.
- 3Meets IEC/EN 60664-1 standards with rated voltage up to 250 V.
- 4Prevents incorrect connections with built-in protection.
- 5Compact dimensions (38.75 mm depth, 25.8 mm width) for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). | Width | 25.8?mm?/ 1.016?inches |
Height | 18.5?mm?/ 0.728?inches | Depth | 38.75?mm?/ 1.526?inches |
Housing sheet thickness | 1 … 3?mm?/ 0.039 … 0.118?inches | Mounting type | Snap-in flange |
Suitable | for socket and plug | Note (material data) | Information on material specifications can be found here |
Color | black | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.076MJ |
Weight | 2.7g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821261162 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 2 |
