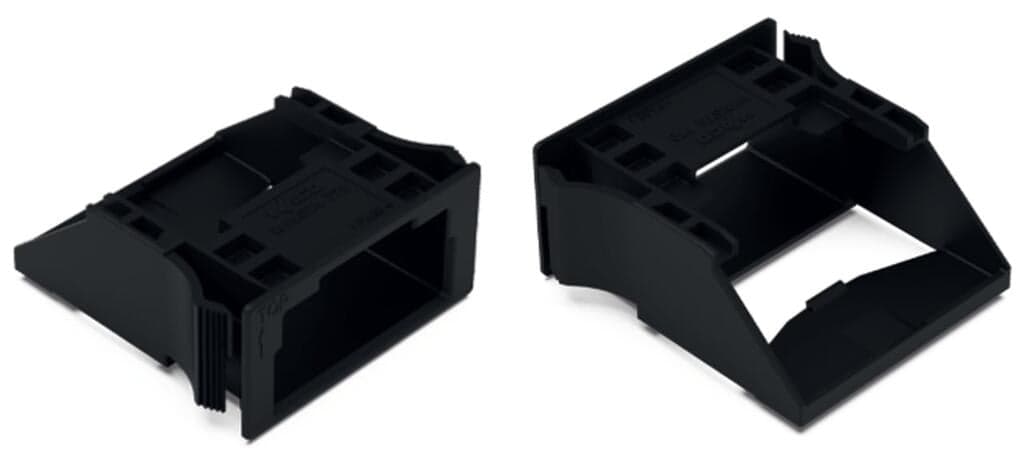

Product Model
770-318
Selling Points
- 1Secure and Easy Installation: Snap-in design ensures quick and secure installation.
- 2High-Quality Materials: Made from durable polyamide 66 (PA 66) with a flammability class of UL94 V0.
- 3Compliant with Standards: Meets IEC/EN 60664-1 overvoltage category III and pollution degree 3.
- 4Versatile Compatibility: Compatible with various locking levers and accessories for enhanced functionality.
- 5Durable and Reliable: Designed to withstand continuous operating temperatures from -35°C to +85°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). | Width | 35.5?mm?/ 1.398?inches |
Height | 17.5?mm?/ 0.689?inches | Depth | 38.75?mm?/ 1.526?inches |
Housing sheet thickness | 1 … 3?mm?/ 0.039 … 0.118?inches | Mounting type | Snap-in flange |
Suitable | for socket and plug | Note (material data) | Information on material specifications can be found here |
Color | black | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.114MJ |
Weight | 3.3g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4066966073744 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 3 |
