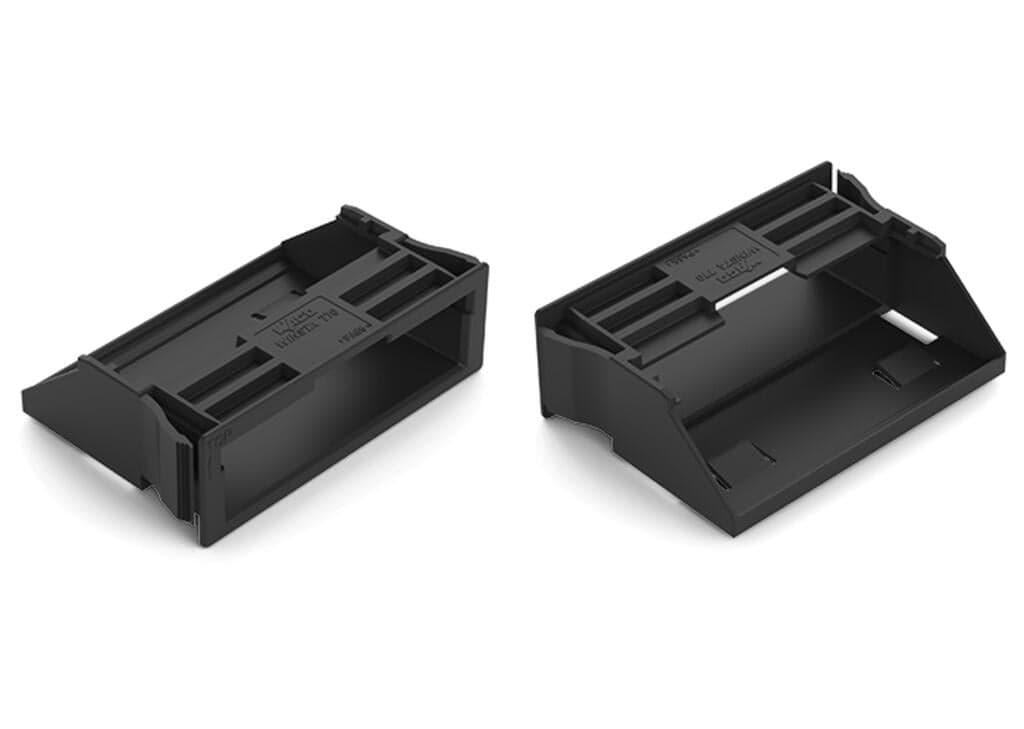

Product Model
770-321
Selling Points
- 1Fast and secure installation with Push-in CAGE CLAMP technology.
- 2Compatible with a variety of electrical projects for quick and easy setup.
- 3Reduces installation costs and minimizes service expenses.
- 4Ensures error-free installation of components and cables.
- 5Compliant with RoHS and suitable for marine applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The snap-in connectors must be relieved of tensile and transverse forces.A surface finish can influence the edge radius of the cutouts. This may affect the snap-in socket fit, so ensure an adequate fit before use. In addition, the punched edge should be on the inside for punched cutouts.The wings of the snap-in connectors must not be mechanically stressed for a long period before use (e.g., due to a pre-locking position). | Width | 55.5?mm?/ 2.185?inches |
Height | 18.5?mm?/ 0.728?inches | Depth | 38.7?mm?/ 1.524?inches |
Housing sheet thickness | 0.5 … 2?mm?/ 0.02 … 0.079?inches | Mounting type | Snap-in flange |
Suitable | for socket and plug | Note (material data) | Information on material specifications can be found here |
Color | black | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.159MJ |
Weight | 5.3g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4055144020571 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 5 |
